| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
114 pcs
|
114 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature Range | |
| Output Current | |
| Power Dissipation |
The LM323K from Analog Devices is a robust three-terminal positive voltage regulator designed for applications requiring a stable 5V output with a high load driving capability of 3A. Its design incorporates internal current limiting and thermal shutdown features, ensuring protection against overloads and excessive temperatures. This device offers a typical output impedance of 0.01 Ohm and requires a minimum input voltage of 7.5V. The power dissipation is rated at 30W.
The LM323K is available in a TO-3 package, suitable for through-hole mounting. It operates within a temperature range of 0°C to 125°C. The thermal resistance from junction to case is 3°C/W, and from junction to ambient is 50°C/W, indicating its suitability for applications with moderate heat dissipation.
This regulator is designed for reliable performance in demanding system environments, with specifications that account for combined effects of input voltage, load current, ambient temperature, and power dissipation.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.

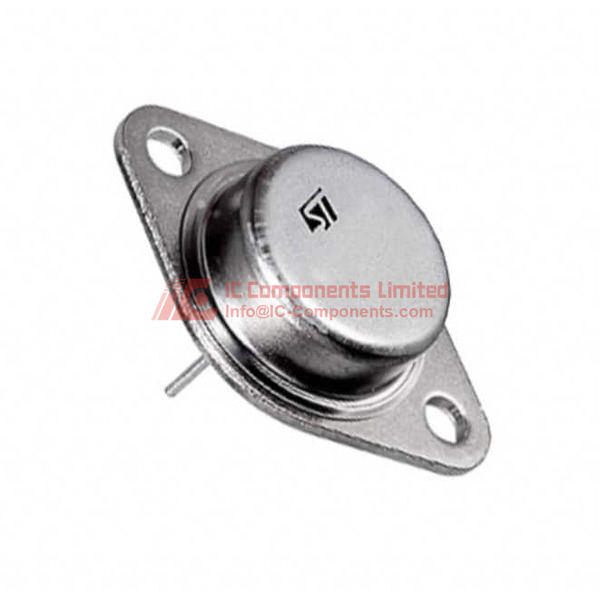

The LM323K comes in a TO-3 package with through-hole mounting.
The operating temperature range is 0°C to 125°C.
3A.
Yes, it features internal current and thermal limiting.
30W.
3°C/W.
7.5V.
