Mfr Part #:

LM317M

Mfr Name: Slkor

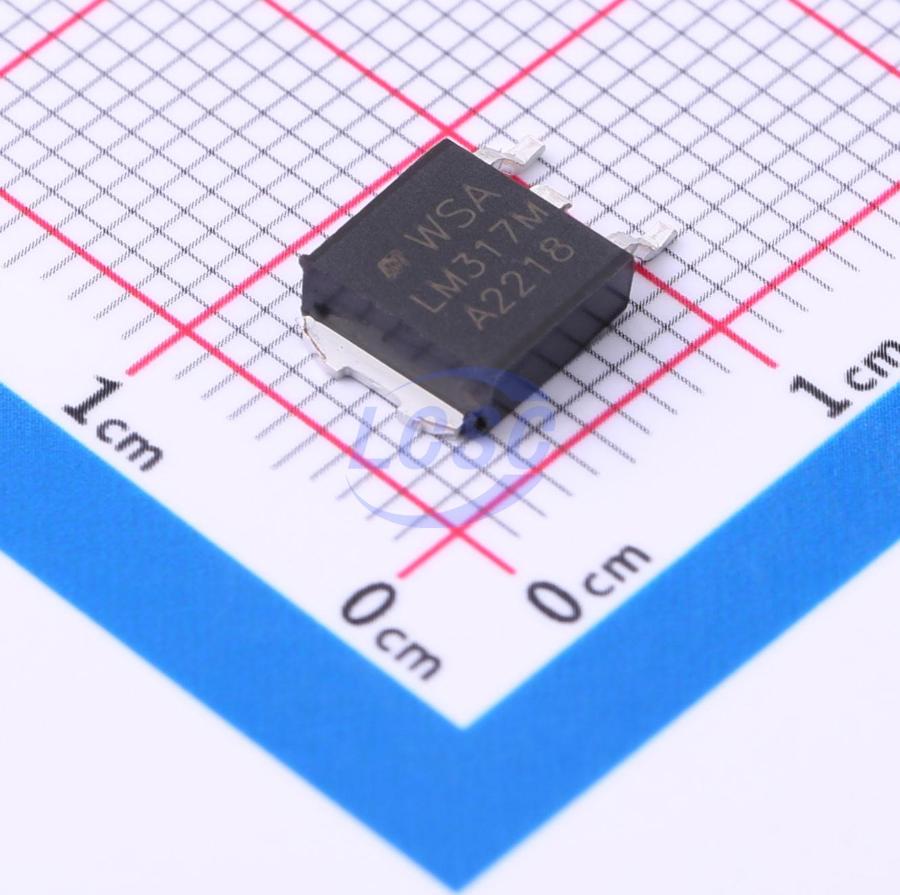

The SLKOR LM317M is an adjustable floating positive-voltage regulator. It provides an output current up to 500mA with an adjustable output voltage range from 1.25V to 37V.

✓ Total Stock: 344 pcs

$ Price Range: $0.28

LM317M Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Braun Electronic Components ✓ Non-Authorised Inventory information	344 pcs On Request	344 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

LM317M Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Slkor
Number of Pins	3-Pin
Output Current	500mA
SVHC Present	Not Present

View Similar Products (0)

LM317M Description

Short technical summary and product information.

The LM317M and LM317MQ are adjustable floating positive-voltage regulators from SLKOR, capable of supplying an output current of up to 500mA over an output voltage range of 1.25V to 37V. These regulators require only two external resistors to set the output voltage and feature built-in short-circuit current limiting and thermal overload protection.

The device operates with a junction temperature range of -40°C to +125°C. It is available in two package types: a 4-pin SOT-223 measuring 6.5mm x 7mm, and a 3-pin TO-252 measuring 6.6mm x 10.11mm. The SOT-223 package has a thermal resistance of 77.7°C/W, while the TO-252 package offers a lower thermal resistance of 31.7°C/W.

Key electrical characteristics include a typical line regulation of 0.01% and a typical load regulation of 0.1%. The LM317M is designed for stable operation without an output capacitor, though one can be optionally added to improve transient performance. The ADJUST pin can be bypassed with a capacitor for high ripple-rejection ratios.

Applications for the LM317M include cordless vacuum cleaners, building security gateways, multifunction printers, and onboard charging systems.

LM317M Quick Information

Product Type: Adjustable Voltage Regulator

Canonical Name: LM317M Adjustable Floating Positive-Voltage Regulator

Subcategory: Linear

LM317M Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

LM317M Estimated Pricing

Qty	Low	High
1+	$0.28	$0.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

LM317M Features

Adjustable output voltage from 1.25V to 37V.
Maximum output current of 500mA.
Built-in short-circuit protection.
Internal thermal overload protection.
Stable operation without output capacitor.

LM317M Applications

Suitable for cordless vacuum cleaners.
Used in building security gateways.
Applicable to multifunction printers.
Designed for onboard charging systems.

LM317M FAQs

6 frequently asked questions generated from this part’s specifications.

What is the output voltage range of the LM317M?

The LM317M has an adjustable output voltage range from 1.25V to 37V.

What is the maximum output current?

The maximum output current is 500mA.

What package options are available?

The LM317M is available in SOT-223 (4-pin) and TO-252 (3-pin) packages.

What is the operating temperature range?

The operating junction temperature range is -40°C to +125°C.

What are the typical line and load regulation values?

Typical line regulation is 0.01% and load regulation is 0.1%.

What is the thermal resistance for each package?

The typical junction-to-ambient thermal resistance is 77.7°C/W for SOT-223 and 31.7°C/W for TO-252.
