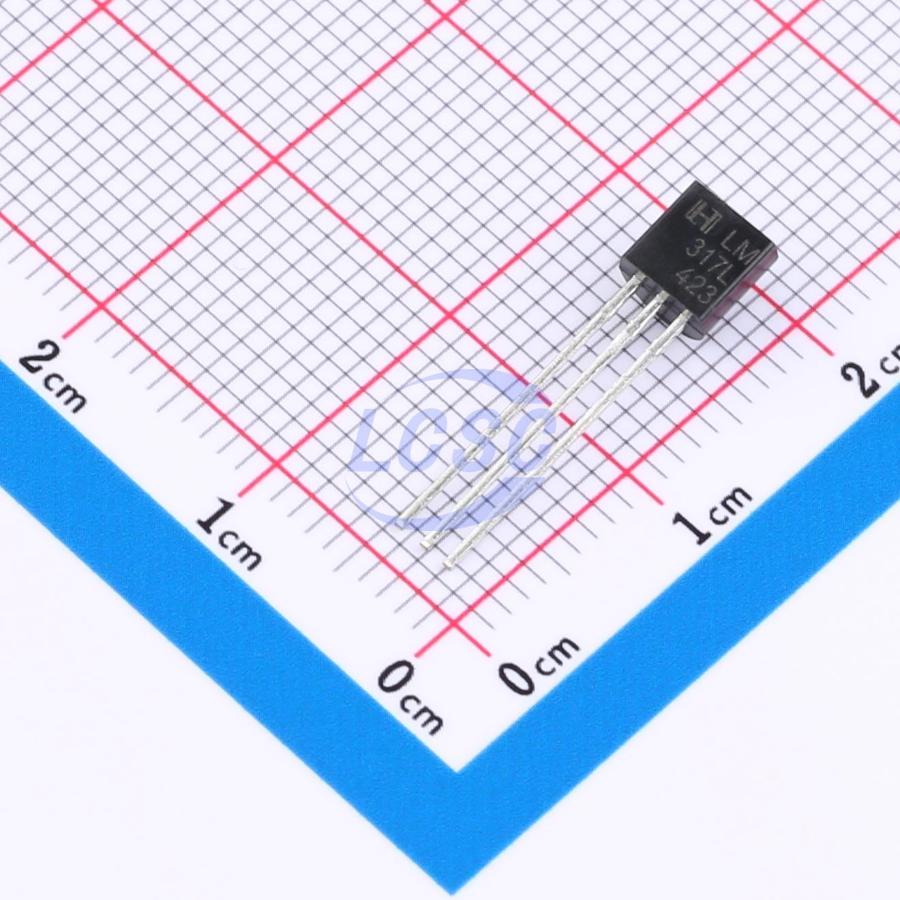

The LM317L from HTC is a versatile adjustable positive voltage regulator designed for applications requiring up to 100mA of current. Its output voltage is adjustable from 1.25V to 37V, making it suitable for a wide range of power supply designs. The device is easy to use, requiring only two external resistors to set the desired output voltage.
Key electrical characteristics include typical input regulation of 0.01% per volt change and typical output regulation of 0.5%. It also offers good ripple rejection, with 80 dB at 120Hz and 65 dB at 100kHz.
The LM317L is available in multiple package options including SOIC (8-pin), TO-92 (3-pin), SOT-89 (3-pin), and TSSOP (8-pin), catering to different board space and mounting requirements. The operating junction temperature range is typically -40°C to +125°C.
This regulator is well-suited for applications such as electronic points of sale, medical devices, printers, appliances, and consumer electronics where a flexible and reliable voltage source is needed.
The output voltage range is adjustable from 1.25V to 37V for new chip versions and 1.25V to 32V for legacy chip versions.
The LM317L can supply up to 100mA of output current.
It has a typical input regulation of 0.01% per input voltage change and a typical output regulation of 0.5%.
For new chip versions, the range is -40°C to +125°C. For legacy chip versions, it is 0°C to +125°C (LM317LC) or -40°C to +125°C (LM317LI).
The LM317L is available in SOIC (8-pin), TO-92 (3-pin), SOT-89 (3-pin), and TSSOP (8-pin) packages.
