| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
361,600 pcs
|
361600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Lead Spacing | |
| Mounting Type | |
| Number of Elements | |
| Operating Temperature | |
| Output Type | |
| Quiescent Current | |
| Response Time | |
| Supplier Device Package | |
| Supplier Package | |
| Supply Voltage | |
| Tape & Reel | |
| Type | |
| Voltage |

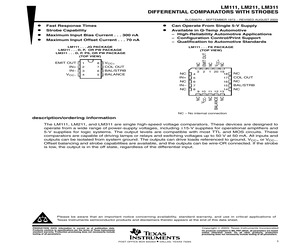

The LM311DG4 from Texas Instruments is a high-performance analog comparator designed for general-purpose applications. It features a low input bias current of 0.25µA at ±15V and operates with a supply voltage range of 3.5V to 30V.
This comparator is available in an 8-SOIC package, suitable for surface mount applications. The operating temperature range is from 0°C to 70°C, making it suitable for various industrial and commercial environments. The output type includes MOS, Open-Collector, Open-Emitter, and TTL.
Key electrical characteristics include a maximum quiescent current of 7.5mA and an offset voltage maximum of 10000µV. The response time is rated at 115ns. The device is designed with one element for comparator functionality.
The operating temperature range for the LM311DG4 is 0°C to 70°C.
The LM311DG4 supports a supply voltage range of 3.5V to 30V for single supplies and ±1.75V to ±15V for dual supplies.
The LM311DG4 is available in an 8-SOIC package with dimensions of 0.154 inches and 3.90mm width.
The input bias current for the LM311DG4 is a maximum of 0.25µA at ±15V.
The response time of the LM311DG4 is 115ns.
