LM293QT

The STMicroelectronics LM293QT is a general-purpose comparator integrated circuit designed for a variety of applications. It features two comparator elements within a single package, offering flexibility in circuit design.

This comparator operates over a broad voltage range, supporting both single and dual supply configurations from 2V to 36V for single supply and ±1V to ±18V for dual supply. It draws a quiescent current of 2.5mA, making it suitable for power-sensitive applications. The output stage is compatible with multiple logic families including CMOS, DTL, ECL, MOS, Open-Collector, and TTL.

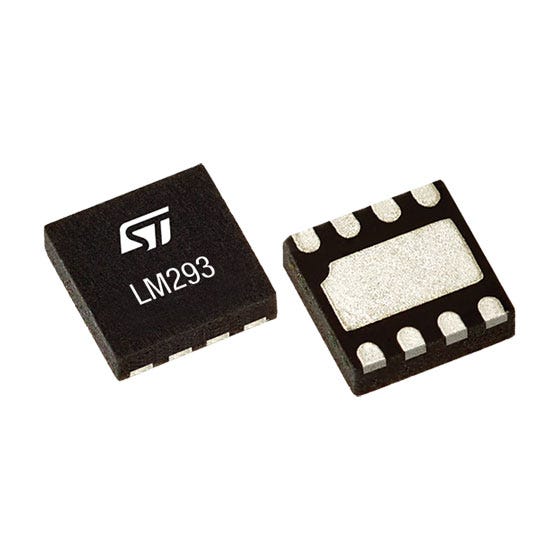

Packaged in an 8-UFDFN exposed pad configuration, the LM293QT is designed for surface mounting. This mounting type is common in modern electronic assemblies, facilitating automated manufacturing processes. The compact 8-UFSON (2x2) supplier package further aids in space-constrained designs.

While compliance details like RoHS and REACH status are listed as 'RoHS3 Compliant' and 'REACH Unaffected' respectively, these are noted as unverified and should be treated with low confidence. The Moisture Sensitivity Level (MSL) is rated as 1 Unlimited, also with low confidence due to lack of verification.
