Mfr Part #:

LM293N

Mfr Name: SIG

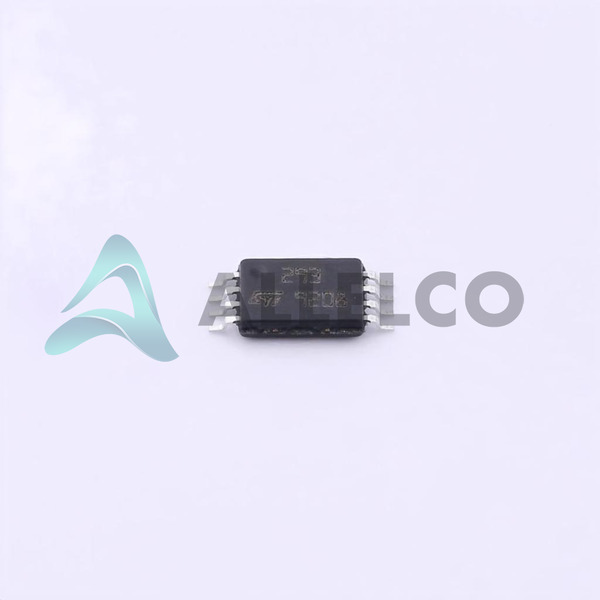

The SIG LM293N is a dual voltage comparator designed for wide single or dual supply operation. It features low supply current and compatible outputs for various logic families.

✓ Total Stock: 50 pcs

$ Price Range: $2.23

LM293N Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Partservice ✓ Non-Authorised Inventory information	50 pcs On Request	50 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

LM293N Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	SIG
Mounting Type	Through Hole
Operating Temperature	-40°C / +105°C
Supply Current	0.4mA

View Similar Products (0)

LM293N Description

Short technical summary and product information.

The SIG LM293N is a dual voltage comparator designed for versatile applications requiring precise voltage comparisons. It operates from a wide single supply voltage range of +2V to +36V or dual supplies from ±1V to ±18V, making it suitable for diverse power environments.

This comparator exhibits a very low supply current of 0.4mA, independent of the supply voltage, contributing to power efficiency. Key electrical characteristics include a low input bias current of 25nA typical, a low input offset current of ±5nA typical, and a low input offset voltage of ±1mV typical. The input common-mode voltage range includes ground, even when operated from a single supply.

The LM293N offers TTL, DTL, ECL, MOS, and CMOS compatible outputs, ensuring broad integration with different logic families. Its output saturation voltage is typically 250mV at 4mA. The device is housed in a DIP-8 package and operates within a temperature range of -40°C to +105°C.

This component is ideal for applications requiring reliable voltage level detection and switching. Its robust design and wide operating parameters make it a suitable choice for various electronic circuits.

LM293N Quick Information

Product Type: Dual Voltage Comparator

Canonical Name: LM293N Dual Voltage Comparator

Subcategory: Dual Voltage Comparator

LM293N Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

LM293N Estimated Pricing

Qty	Low	High
1+	$2.23	$2.23

Estimated market price range - modelled values for guidance only, not live distributor offers.

LM293N Features

Wide single supply voltage range.
Dual supply operation supported.
Very low supply current.
Input common-mode range includes ground.
TTL, DTL, ECL, MOS, CMOS compatible outputs.

LM293N Applications

Voltage level detection circuits.
Power supply monitoring.
Window comparator applications.
General purpose comparison tasks.
