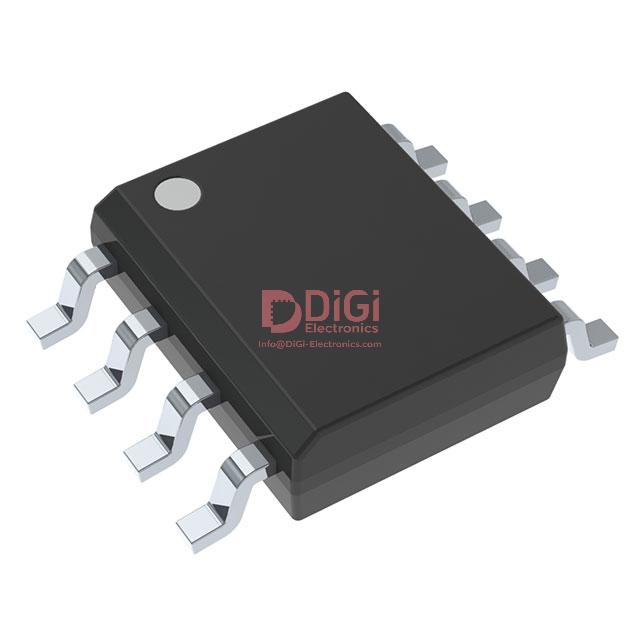

LM293D The Texas Instruments LM293D is a dual comparator IC designed for general-purpose applications. It features open-collector outputs and operates over a wide voltage range.
Mfr Part #:

LM293D

Available from 6 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments LM293D is a dual comparator IC designed for general-purpose applications. It features open-collector outputs and operates over a wide voltage range.
✓ Total Stock: 206,318 pcs

LM293D Available from 6 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LM293D Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Mounting Type
Number of Elements
Operating Temperature
Output Current
Output Type
Quiescent Current
Storage Temperature
Supplier Device Package
Supply Voltage
Tape & Reel
Type
Voltage
View Similar Products (0)

LM293D Description

Short technical summary and product information.

The Texas Instruments LM293D is a dual comparator integrated circuit. It is designed to operate from a single power supply over a wide range of voltages, from 2V to 36V, or from dual supplies. Each comparator within the LM293D features two independent inputs and an open-collector output, compatible with TTL, MOS, and CMOS logic levels.



Key electrical characteristics include a low input bias current of 0.25µA maximum and a low input offset voltage of 5mV maximum at 30V. The device has a maximum quiescent current of 2.5mA and can provide an output current of 20mA typical. The operating temperature range for the LM293D is -25°C to 85°C.



This comparator is housed in an 8-SOIC package with a surface mount type. The 8-SOIC package has a width of 0.154 inches (3.90mm). Its open-collector output allows for wired-AND logic configurations, making it versatile for various circuit designs.



The LM293D is suitable for applications requiring precise voltage level detection and comparison. Its wide operating voltage and temperature range, combined with its output compatibility, make it a flexible component for embedded systems and control circuits.

LM293D Quick Information

Product Type: Comparator IC
Canonical Name: LM293D Dual Comparator
Subcategory: Linear

LM293D Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LM293D Features

  • Dual independent voltage comparators.
  • Wide supply voltage range: 2V to 36V.
  • Low input bias current: 0.25µA maximum.
  • Open-collector, open-drain, rail-to-rail outputs.
  • Surface mount 8-SOIC package.

LM293D Applications

  • General purpose voltage comparison.
  • Logic level translation circuits.
  • Threshold detection applications.
  • Wired-AND logic configurations.

LM293D FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the LM293D?

The LM293D operates from a single supply voltage of 2V to 36V, or from dual supplies with a difference of 2V to 36V.

What is the package type for the LM293D?

The LM293D is available in an 8-SOIC package.

What is the operating temperature range of the LM293D?

The LM293D is characterized for operation from -25°C to 85°C.

How many comparators are in the LM293D?

The LM293D contains two independent voltage comparators.

What type of output does the LM293D have?

The LM293D features open-collector, open-drain, and rail-to-rail output types.
