| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
46,359 pcs
|
46359 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Output Current | |
| Output Voltage | |
| SVHC Present |

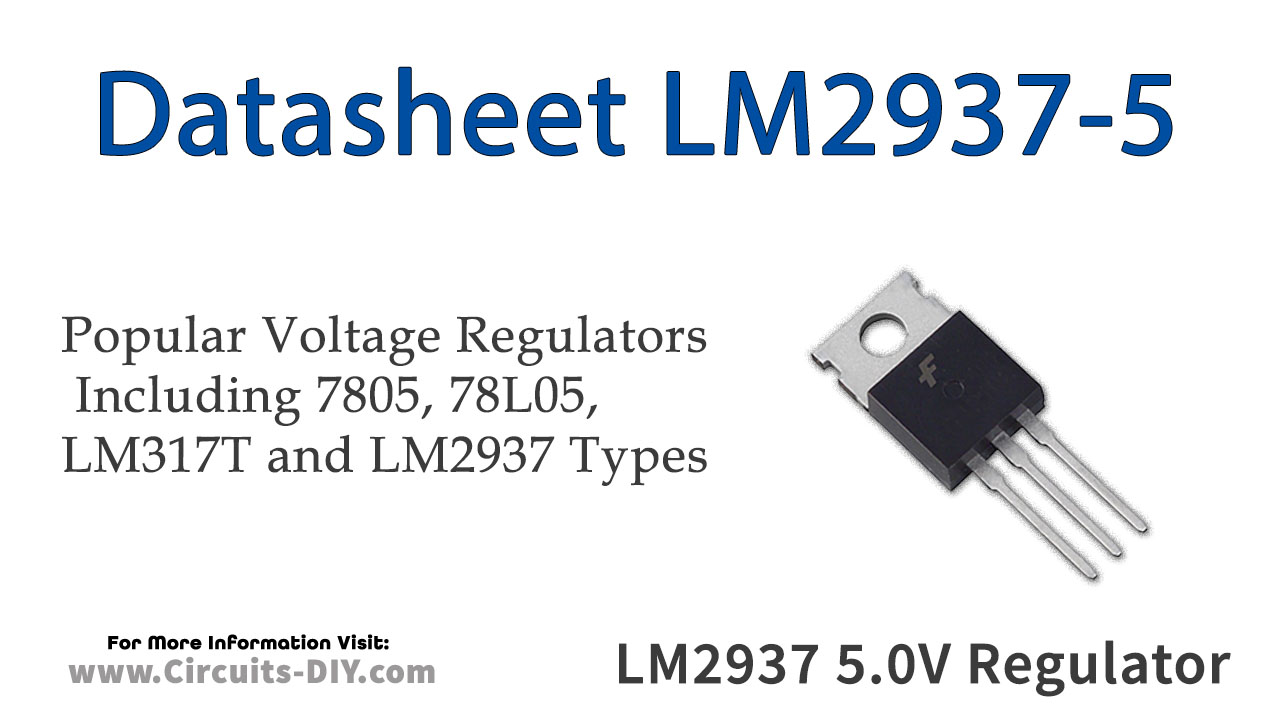

The LM2937-5V is a positive voltage regulator from Texas Instruments designed to supply up to 500 mA of load current. It utilizes a PNP power transistor, resulting in a low dropout voltage characteristic, typically 0.5V at full load. The output is trimmed to within 5% tolerance under all operating conditions.
Key features include internal short circuit and thermal overload protection, reverse battery protection, and 60V input transient protection. The LM2937 requires an output bypass capacitor for stability, and includes special compensation circuitry that relaxes ESR requirements.
This regulator is suitable for automotive applications and other systems requiring a stable 5V output with moderate current capability and low dropout voltage.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal output voltage is 5V.
The output current is in excess of 500mA.
The typical dropout voltage is 0.5V at full rated load current.
Yes, it includes internal short circuit and thermal overload protection, as well as reverse battery and 60V input transient protection.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1.
