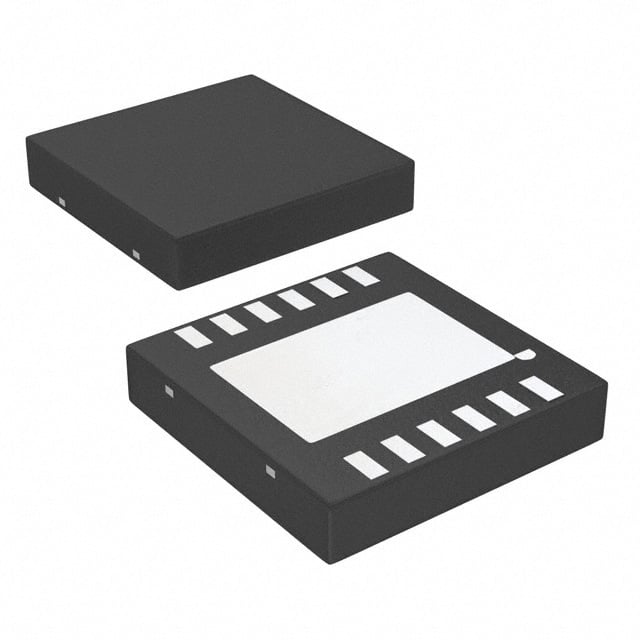

The LM2700LD-ADJ from Texas Instruments is a versatile step-up (boost) DC/DC converter designed for efficient power management. It features an adjustable output voltage capability, reaching up to 17.5V, and incorporates a robust 3.6A internal switch with a low 0.08Ω resistance. This device offers flexibility with pin-selectable operating frequencies of 600kHz and 1.25MHz, allowing for optimized filtering and noise reduction in various applications.
The converter operates from an input voltage range of 2.2V to 12V and includes essential protection features such as input undervoltage protection and over-temperature protection. It is suitable for applications requiring a positive output voltage and can deliver up to 2.55A of switch current. The LM2700LD-ADJ is designed for surface mount applications and comes in a compact 14-WSON (4x4) or 14-WFDFN exposed pad package.
With a quiescent current of 2.0mA at 600kHz and 3.0mA at 1.25MHz, the LM2700LD-ADJ is efficient at light loads. Its design facilitates the use of small, low ESR ceramic capacitors at the output, making it ideal for space-constrained designs. The device is rated for an operating temperature range of -40°C to 125°C (TJ).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.16 | $0.16 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage is 2.2V.
The output voltage is adjustable up to 17.5V.
The operating temperature range is -40°C to 125°C.
The LM2700LD-ADJ is available in a 14-WSON (4x4) surface-mount package.
The LM2700LD-ADJ supports selectable switching frequencies of 600kHz and 1.25MHz.
Yes, the LM2700LD-ADJ includes over-temperature protection.
