| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
31 pcs
|
31 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Efficiency | |
| Input Voltage | |
| Mounting Type | |
| Number of Pins | |
| Operating Temperature | |
| Output Current | |
| Output Voltage |
The Texas Instruments LM2676S-5.0/NOPB is an active SIMPLE SWITCHER® regulator IC designed for step-down (buck) applications. It can drive loads up to 3A and features a fixed 5V output voltage. The device accepts a wide input voltage range from 8V to 40V.
Key electrical characteristics include a high efficiency of over 90% and a fixed internal oscillator frequency of 260kHz. It incorporates a 150mΩ DMOS output switch. The regulator offers a standby current of 50µA when powered off and maintains an output voltage tolerance of ±2% across all input voltage and load conditions.

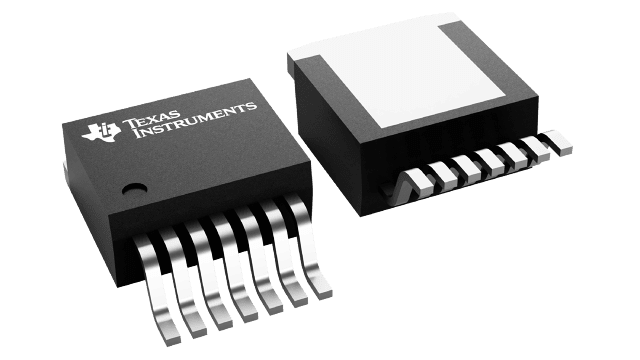

This IC is housed in a 7-pin TO-263 (KTW) package suitable for surface mounting. The operating junction temperature range is -40℃ to 125℃. The LM2676 series simplifies design with minimal external components required, making it suitable for various power management applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.08 | $1.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The LM2676S-5.0/NOPB has a fixed output voltage of 5V.
The maximum output current is 3A.
The input voltage range is from 8V to 40V.
The operating temperature range is -40℃ to 125℃.
The LM2676S-5.0/NOPB is supplied in a TO-263 package.
The RoHS status is RoHS3 Compliant.
The MSL rating is Level 3.
