LM2596T-ADJ/LF02 The Texas Instruments LM2596T-ADJ/LF02 is an adjustable step-down switching regulator. It features a 4.5V to 40V input voltage range and a 3A output current capability.
Mfr Part #:

LM2596T-ADJ/LF02

Available from 1 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments LM2596T-ADJ/LF02 is an adjustable step-down switching regulator. It features a 4.5V to 40V input voltage range and a 3A output current capability.
✓ Total Stock: 540 pcs

LM2596T-ADJ/LF02 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Non-Authorised Inventory information
540 pcs
540 pcs On Request 1 On Request On Request On Request On Request On Request

LM2596T-ADJ/LF02 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Frequency
Function
Lead Style
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Type
Supplier Device Package
Synchronous Rectifier
Topology
Voltage

LM2596T-ADJ/LF02 Description

Short technical summary and product information.

The LM2596T-ADJ/LF02 from Texas Instruments is a monolithic integrated circuit designed for step-down (buck) switching regulator applications. It is capable of driving a 3A load with excellent line and load regulation.



This regulator operates with an input voltage range of 4.5V to 40V and provides an adjustable output voltage from 1.2V to 37V. It features a fixed switching frequency of 150kHz, which allows for the use of smaller external filter components compared to lower frequency regulators. The device requires a minimum number of external components for operation, including internal frequency compensation and a fixed-frequency oscillator.

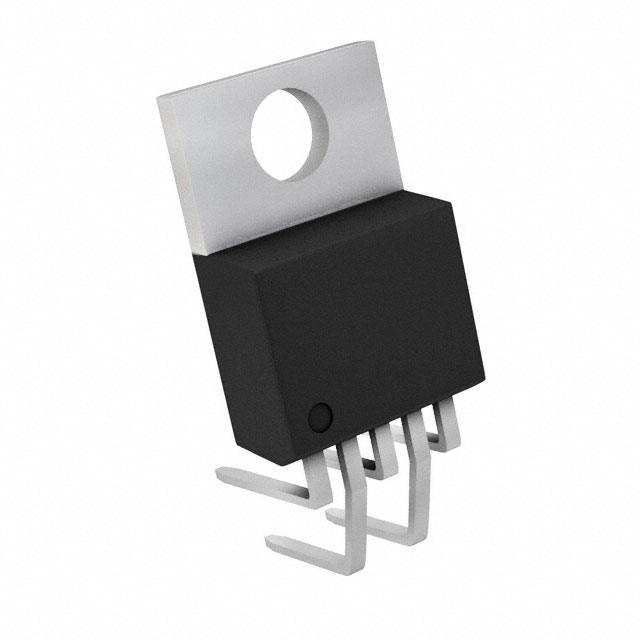

Designed for ease of use, the LM2596T-ADJ/LF02 includes thermal shutdown and current-limit protection. It is available in a TO-220-5 package suitable for through-hole mounting. The operating temperature range is -40°C to 125°C (TJ).

LM2596T-ADJ/LF02 Quick Information

Product Type: Voltage Regulator
Series: LM2596
Canonical Name: LM2596T-ADJ/LF02 Adjustable Step-Down Switching Regulator
Subcategory: DC/DC Switching Regulator

LM2596T-ADJ/LF02 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LM2596T-ADJ/LF02 Features

  • Adjustable output voltage from 1.2V to 37V.
  • 3A output current capability.
  • Wide 4.5V to 40V input voltage range.
  • 150kHz fixed switching frequency.
  • TO-220-5 through-hole package.

LM2596T-ADJ/LF02 Applications

  • Efficient step-down voltage conversion.
  • Power supplies for various electronic devices.
  • Adjustable voltage regulation circuits.
  • Low component count designs.

LM2596T-ADJ/LF02 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of LM2596T-ADJ/LF02?

The input voltage range is 4.5V to 40V.

What is the output current capability?

The output current capability is up to 3A.

What is the output voltage range?

The output voltage is adjustable from 1.2V to 37V.

What is the switching frequency?

The switching frequency is fixed at 150kHz.

What package is the LM2596T-ADJ/LF02 available in?

It uses a TO-220-5 through-hole package with formed leads.

What is the operating temperature range?

The operating junction temperature range is -40°C to 125°C.

Is the regulator synchronous or non-synchronous?

It is non-synchronous.
