| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
59 pcs
|
59 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Industrial Grade | |
| Input Voltage | |
| Lead Spacing | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel |

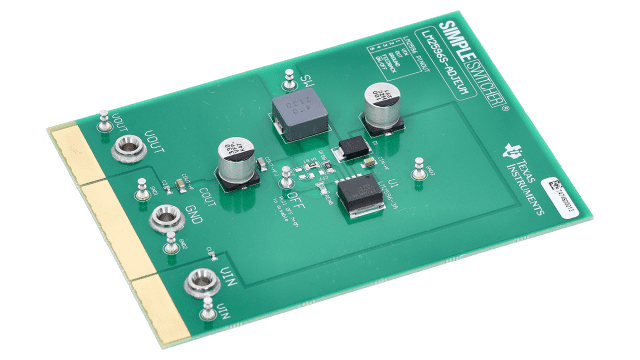

The LM2596S-ADJ from SLKOR is a monolithic integrated circuit designed for step-down (buck) switching regulator applications. It is capable of driving a 3A load with excellent line and load regulation.
This regulator operates at a fixed switching frequency of 150 kHz, which allows for the use of smaller filter components compared to lower-frequency regulators. The adjustable output voltage version offers a wide output voltage range from 1.2V to 37V. It requires a minimum number of external components for operation, including internal frequency compensation and a fixed-frequency oscillator.
Key features include a guaranteed 3A output current, input voltage range up to 40V, and ±4% maximum output voltage tolerance under specified conditions. It also includes TTL shutdown capability and low power standby mode. For protection, it incorporates thermal shutdown and current limit features.
The LM2596S-ADJ is available in TO-220 and TO-263 packages, suitable for through-hole mounting.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.08 | $1.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The adjustable version output voltage range is 1.2V to 37V.
The LM2596S-ADJ has a guaranteed 3A output load current.
The LM2596S-ADJ operates at a fixed frequency of 150 kHz.
The operating temperature range is -40°C to +125°C.
The LM2596S-ADJ is available in TO-220, TO-263, and TO-220B packages.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
