| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | 1033P/ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Package / Case |

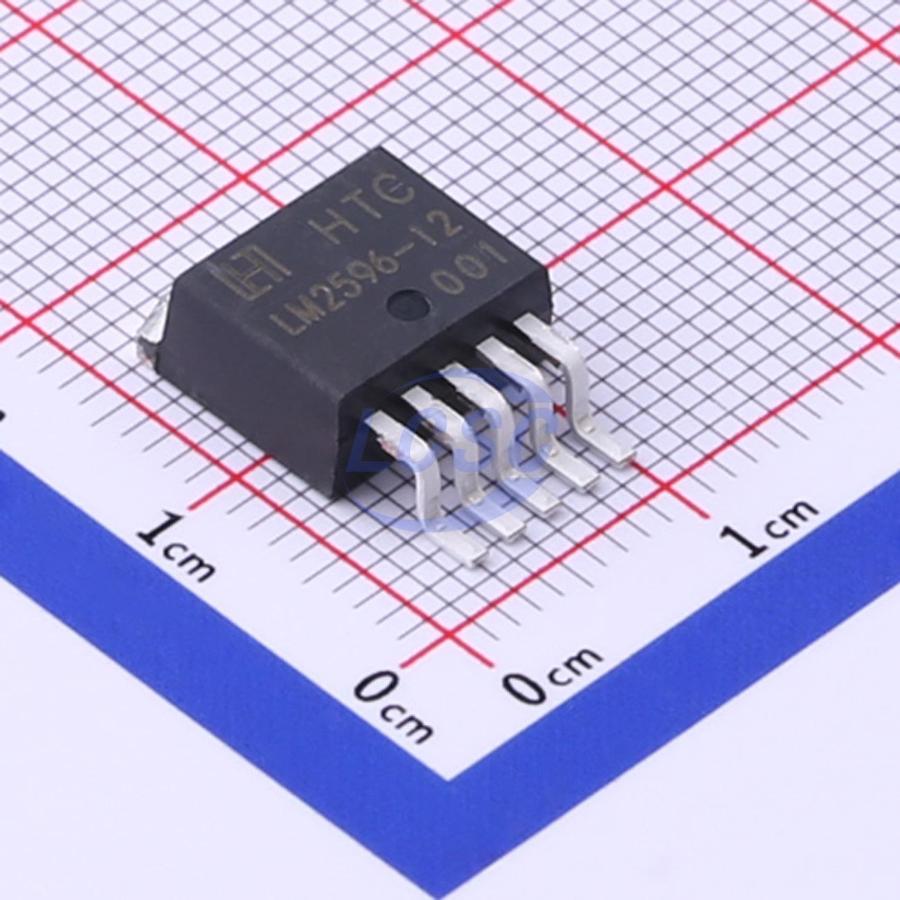

The LM2596R-12 from HTC is a widely used step-down (buck) switching regulator IC. It is designed to efficiently convert a higher input voltage to a lower, regulated output voltage. This component is known for its high current capability, supporting up to 3A of continuous output current and a peak output current of 6.9A.
The regulator accepts an input supply voltage ranging from 4.5V to 40V. It operates at a switching frequency of 150kHz, contributing to its efficiency. The LM2596R-12 is available in TO-220 and TO-263 packages, making it suitable for various power module applications and for controlling heavy loads.
Key features include integrated thermal shutdown and current limit functionalities, simplifying circuit design. The adjustable version, LM2596-ADJ, allows for variable output voltage, while fixed versions like the LM2596R-12 are also available. Its ease of use and minimal external component requirement make it a practical choice for power supply designs.
The input supply voltage range is 4.5V to 40V.
The continuous output current is 3A.
The switching frequency is 150kHz.
It is available in TO-220 and TO-263 packages.
