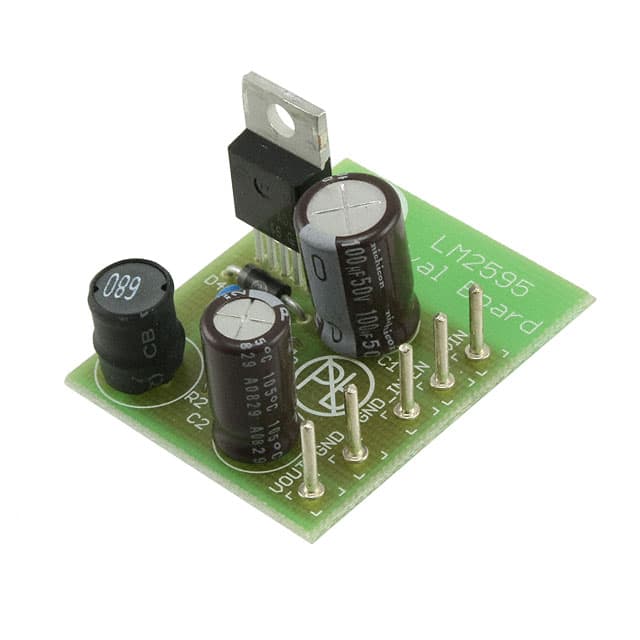

The LM2595ATPBCKGEVB is a fully populated evaluation board from On Semiconductor, designed to showcase the capabilities of the LM2595 step-down switching regulator. This board supports a wide input voltage range from 4.5V to 40V and can deliver a guaranteed output load current of 1.0A. The integrated LM2595 IC operates at a fixed switching frequency of 150kHz, enabling the use of smaller external filter components.
This evaluation board is ideal for designers looking to implement efficient pre-regulators for linear regulators, on-card switching regulators, or positive-to-negative converters. The board features a non-isolated output and is supplied as a single board.
Key electrical specifications include an adjustable output voltage range from 1.23V to 37V. The LM2595 also includes internal loop compensation, thermal shutdown, and current limit protection for enhanced reliability. The board is designed for ease of use, allowing for quick prototyping and testing of buck converter designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The evaluation board is designed to support a guaranteed output load current of 1.0 A.
The evaluation board supports a wide input voltage range up to 40 V.
The LM2595 regulator operates at a fixed switching frequency of 150 kHz.
The output voltage can be adjusted within the range of 1.23 V to 37 V.
This evaluation board uses a Buck regulator topology.
The main purpose of this evaluation board is for DC/DC conversion, specifically step-down applications.
The RoHS status is listed as RoHS3 Compliant.
