| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
488,649 pcs
|
488649 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,605 pcs
|
1605 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,200 pcs
|
1200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Amplifier Type | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Slew Rate | |
| Supplier Device Package |

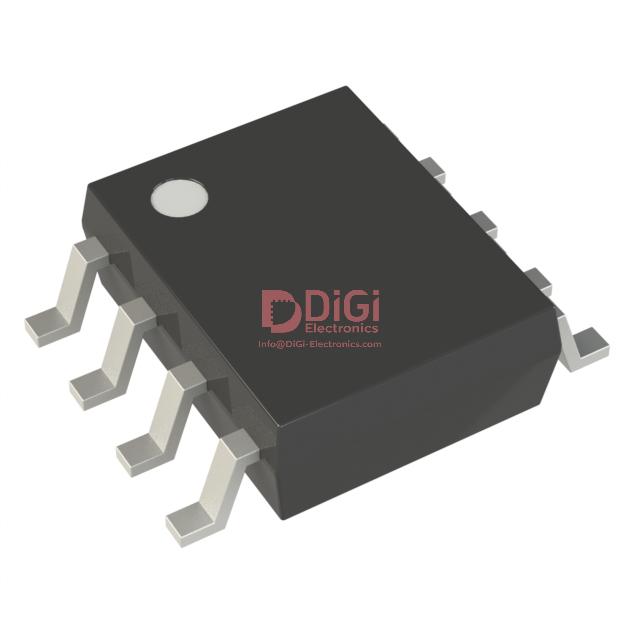

The STMicroelectronics LM258D is a versatile general-purpose operational amplifier designed for a wide range of applications. This component features two independent amplifier circuits within a single package, making it suitable for designs requiring dual amplification stages.
Key electrical characteristics include a gain bandwidth product of 1.1 MHz and a slew rate of 0.6V/µs, ensuring adequate performance for many signal processing tasks. The amplifier operates from a supply voltage span of 3V to 30V, providing flexibility for various power configurations. It also features a low input bias current of 20 nA and an input offset voltage of 5 mV.
The LM258D is housed in a standard 8-SOIC surface-mount package, facilitating integration into compact electronic assemblies. Its operating temperature range is -40°C to 105°C, allowing for use in demanding environmental conditions. The device is designed for general-purpose amplification needs, offering a reliable solution for analog circuit design.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The LM258D operates from -40°C to 105°C.
The LM258D is available in an 8-SOIC package.
The gain bandwidth product for the LM258D is 1.1 MHz.
The LM258D can operate with supply voltages ranging from 3V to 30V.
