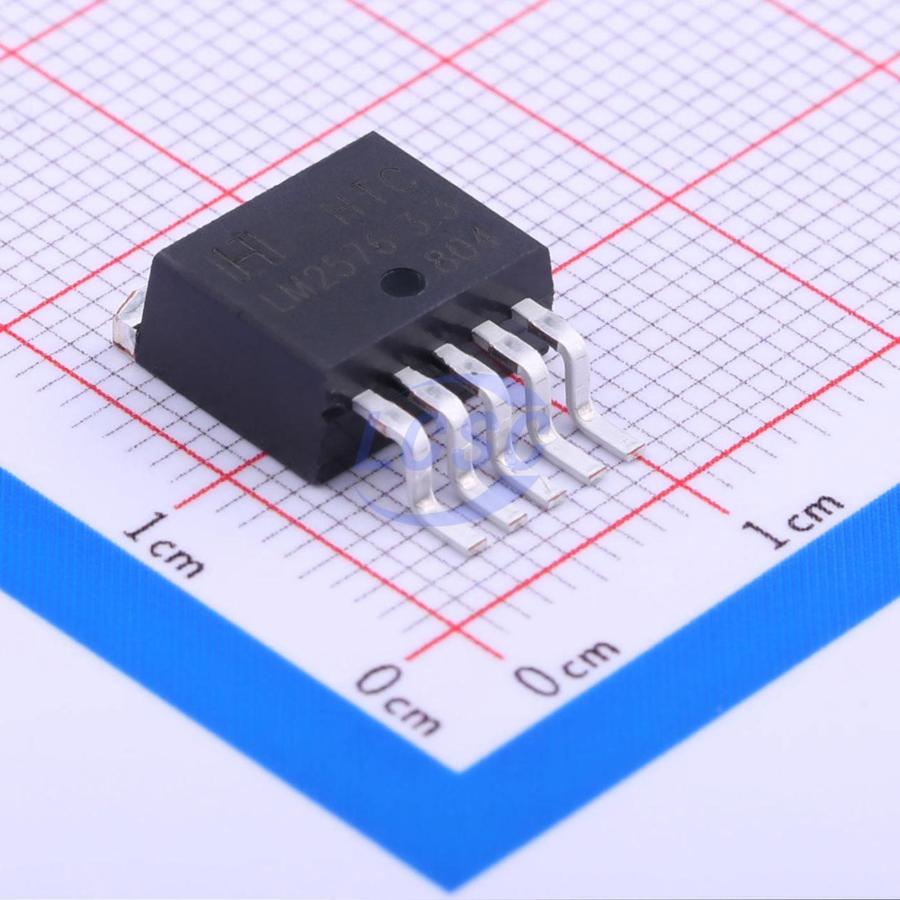

LM2576R-3.3 The HTC LM2576R-3.3 is a 3A step-down switching regulator. It offers a fixed 3.3V output voltage and operates at a 52kHz switching frequency.
Mfr Part #:

LM2576R-3.3

Available from 2 distributors
Mfr Name: HTC
HTC
The HTC LM2576R-3.3 is a 3A step-down switching regulator. It offers a fixed 3.3V output voltage and operates at a 52kHz switching frequency.
✓ Total Stock: 5,323 pcs

LM2576R-3.3 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
3,850 pcs
On Request
3850 pcs On Request 1 On Request On Request 21+ On Request On Request
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
1,473 pcs
On Request
1473 pcs On Request 1 On Request On Request 0826P//A/ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LM2576R-3.3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Efficiency
Input Voltage
Lead Style
Mounting Type
Operating Temperature
Output Current
Package / Case
Protection
Shutdown
View Similar Products (0)

LM2576R-3.3 Description

Short technical summary and product information.

The LM2576R-3.3 from HTC is a monolithic integrated circuit designed for easy and convenient implementation of step-down switching regulators (buck converters). This device is capable of driving a 3.0A load with excellent line and load regulation, providing a fixed 3.3V output.



Key electrical specifications include a guaranteed 3.0A output current and a fixed 52kHz internal oscillator frequency. It features a wide input voltage range and requires only four external components for operation, simplifying power supply design. The regulator includes essential protection features such as thermal shutdown and current limit protection for enhanced reliability.



This component is suitable for applications requiring high-efficiency step-down conversion. Its switch-mode design offers significantly higher efficiency compared to linear regulators, especially at higher input voltages, potentially reducing or eliminating the need for a heatsink. The TO-263-5L package is designed for surface mounting.



The LM2576 series is also available in other fixed output voltages (5.0V, 12V, 15V) and an adjustable version. Standard inductors optimized for use with the LM2576 are readily available from multiple manufacturers.

LM2576R-3.3 Quick Information

Product Type: DC DC Converter
Series: LM2576
Canonical Name: LM2576R-3.3 Step-Down Switching Regulator
Subcategory: Step-Down

LM2576R-3.3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level 1
REACH Status: REACH Unaffected

LM2576R-3.3 Features

  • Guaranteed 3.0A output current.
  • Fixed 52kHz switching frequency.
  • Simple step-down buck regulator design.
  • Thermal shutdown and current limit protection.
  • TO-263-5L surface mount package.

LM2576R-3.3 Applications

  • Simple high-efficiency step-down regulators.
  • Efficient pre-regulator for linear regulators.
  • On-card switching power supplies.
  • Power supply for battery chargers.

LM2576R-3.3 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the output voltage of the LM2576R-3.3?

The fixed output voltage is 3.3V.

What is the maximum output current?

The guaranteed output current is 3A.

What is the switching frequency?

The fixed switching frequency is 52kHz.

What package is the LM2576R-3.3 available in?

It is available in a TO-263-5L surface mount package.

What protection features does it have?

It includes thermal shutdown and current limit protection.

Does it have a shutdown feature?

Yes, it has a TTL shutdown capability.
