| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
76 pcs
|
76 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Frequency | |
| Input Voltage | |
| Lead Style | |
| Output Current | |
| Output Voltage | |
| Package Quantity |
The LM2576HVT-ADJ/NOPB from Texas Instruments is a monolithic integrated circuit designed for step-down (buck) switching regulator applications. It is capable of driving a 3A load with excellent line and load regulation. This regulator requires a minimum number of external components, making it simple to use and incorporating fault protection and a fixed-frequency oscillator.
Key electrical specifications include a wide input voltage range of up to 60V for the HV version, and an adjustable output voltage range from 1.23V to 37V (or 57V for HV version) with ±4% maximum line and load regulation. It operates at a fixed frequency of 52kHz and can deliver up to 3A of output current. The device also includes TTL-shutdown capability for a low-power standby mode.
This regulator is housed in a TO-220 package, suitable for through-hole mounting. The operating temperature range is -40°C to 125°C. The LM2576 series offers a high-efficiency replacement for popular three-terminal linear regulators, significantly reducing the size of the required heat sink.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.83 | $2.83 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The adjustable version output voltage range is 1.23 V to 37 V (57 V for HV version) with ±4% maximum over line and load conditions.
The LM2576HVT-ADJ/NOPB can supply a specified output current of 3A.
The input voltage range for the HV version is up to 60V.
The operating temperature range is -40°C to 125°C.

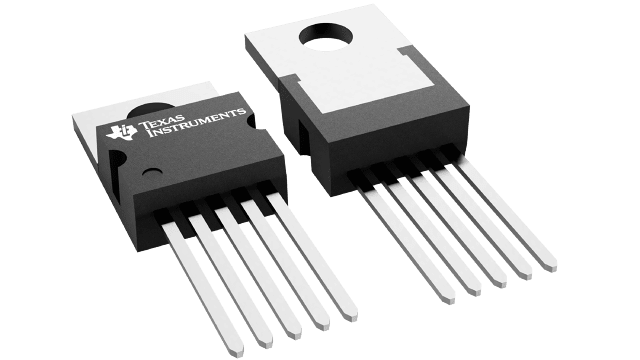

This part is supplied in a TO-220 package.
The MSL rating is Level 1 Unlimited.
