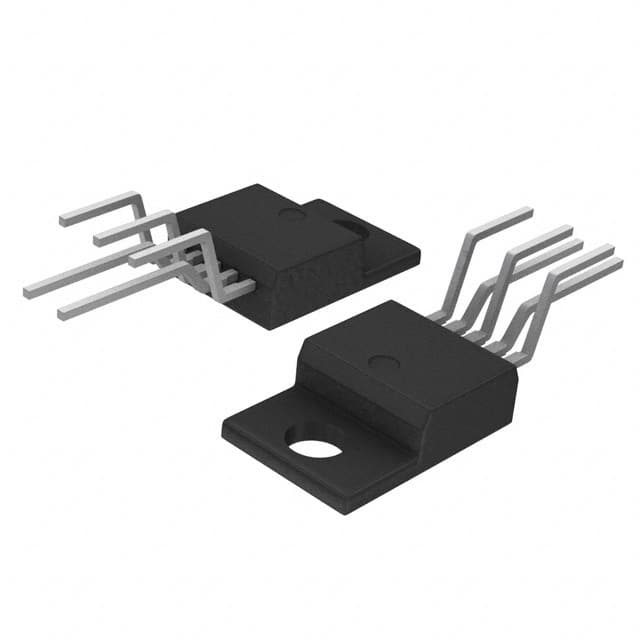

LM2575TV-ADJG The ON Semiconductor LM2575TV-ADJG is an adjustable output, step-down switching voltage regulator capable of delivering 1A of current. It operates at a fixed frequency of 52kHz.
Mfr Part #:

LM2575TV-ADJG

Available from 2 distributors
Mfr Name: On Semiconductor
On Semiconductor
The ON Semiconductor LM2575TV-ADJG is an adjustable output, step-down switching voltage regulator capable of delivering 1A of current. It operates at a fixed frequency of 52kHz.
✓ Total Stock: 8,612 pcs
$ Price Range: $0.16

LM2575TV-ADJG Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
5,212 pcs
On Request
5212 pcs On Request 1 On Request On Request 17+ On Request On Request
Flip Electronics ✓
Non-Authorised Inventory information
3,400 pcs
On Request
3400 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LM2575TV-ADJG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Frequency
Function
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Type
SVHC Present
Supplier Device Package
Supplier Package
Synchronous Rectifier
Topology
Voltage
View Similar Products (0)

LM2575TV-ADJG Description

Short technical summary and product information.

The LM2575TV-ADJG from ON Semiconductor is a monolithic integrated circuit designed for easy and convenient design of step-down switching regulators (buck converters). This device can drive a 1.0 A load with excellent line and load regulation.



Key electrical specifications include an adjustable output voltage range from 1.23 V to 37 V, a guaranteed 1.0 A output current, and a wide input voltage range of 4.75 V to 40 V. It features a fixed internal oscillator operating at 52 kHz, providing high efficiency compared to linear regulators. The regulator includes thermal shutdown and cycle-by-cycle current limiting for protection under fault conditions.



Designed to minimize external components, the LM2575 series requires only four external components for a complete power supply design. It is available in a TO-220-5 package with formed leads, suitable for through-hole mounting. The operating temperature range is -40°C to 125°C (TJ).

LM2575TV-ADJG Quick Information

Product Type: Switching Voltage Regulator
Series: LM2575
Canonical Name: LM2575TV-ADJG Step-Down Switching Voltage Regulator
Subcategory: Switching Voltage Regulator

LM2575TV-ADJG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LM2575TV-ADJG Estimated Pricing

Qty Low High
1+ $0.16 $0.16

Estimated market price range - modelled values for guidance only, not live distributor offers.

LM2575TV-ADJG Features

  • Adjustable output voltage from 1.23V to 37V.
  • Guaranteed 1.0 A output current.
  • Wide input voltage range of 4.75V to 40V.
  • Fixed 52 kHz internal oscillator.
  • TO-220-5 package for through-hole mounting.

LM2575TV-ADJG Applications

  • Easy design of step-down regulators.
  • High efficiency power supplies.
  • Minimizes external component count.
  • Suitable for various DC-DC conversion needs.

LM2575TV-ADJG FAQs

6 frequently asked questions generated from this part’s specifications.
What is the adjustable output voltage range for the LM2575TV-ADJG?

The adjustable output voltage range is from 1.23 V to 37 V.

What is the maximum output current of the LM2575TV-ADJG?

The guaranteed output current is 1 A.

What is the input voltage range for this regulator?

The input voltage range is from 4.75 V to 40 V.

What is the switching frequency of the LM2575TV-ADJG?

The switching frequency is 52 kHz.

What is the operating temperature range?

The operating temperature range is -40°C to 125°C (TJ).

What package type is the LM2575TV-ADJG in?

It is in a TO-220-5 package with formed leads.
