| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
22,600 pcs
|
22600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Duty Cycle | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Output Current | |
| Quiescent Current |
The Texas Instruments LM25576MH is an easy-to-use buck regulator designed for efficient power supply designs. It delivers 3A of continuous output current and features an integrated 170mΩ N-channel MOSFET.
With an ultra-wide input voltage range of 6V to 42V, the LM25576MH is suitable for various applications. The output voltage is adjustable down to 1.225V with a feedback reference accuracy of 1.5%. The operating frequency can be adjusted between 50kHz and 1MHz using a single resistor, and it supports controller or peripheral frequency synchronization.
Key features include emulated current mode control, a wide bandwidth error amplifier, and built-in protection mechanisms. The device operates within a temperature range of -40°C to 125°C. It is available in an HTSSOP-20EP package.
This regulator allows design engineers to create robust power supplies with a minimum component count. Its features like adjustable soft start and integrated protection make it a reliable choice for power management solutions.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.08 | $1.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 6V to 42V.
The maximum output current is 3A.
The operating temperature range is -40°C to 125°C.

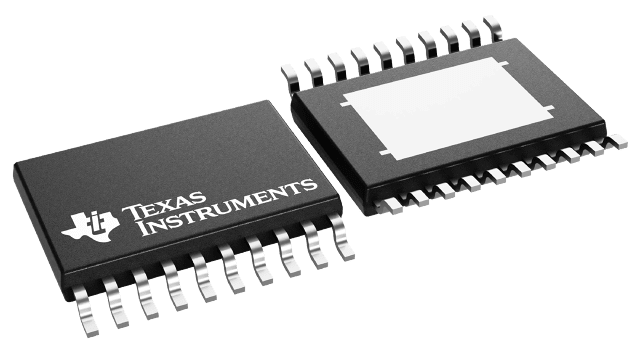

The LM25576MH is available in a HTSSOP-20EP surface-mount package.
The switching frequency is adjustable from 50kHz to 1MHz.
The typical quiescent current is 0.001A.
