| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,081 pcs
|
1081 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Clock Sync | |
| Control Features | |
| Duty Cycle (Max) | |
| Features | |
| Frequency | |
| Function | |
| Lead Style | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Phases | |
| Output Type | |
| Output Voltage | |
| SVHC Present | |
| Supplier Device Package | |
| Synchronous Rectifier | |
| Topology | |
| Voltage |
The LM25145RGYR from Texas Instruments is a synchronous buck DC-DC controller designed for versatile power management applications. It supports a wide input voltage range from 6V to 42V, with an adjustable output voltage capability from 0.8V to 40V. This controller features a switching frequency adjustable from 100 kHz to 1 MHz, allowing for optimization of efficiency and component size.

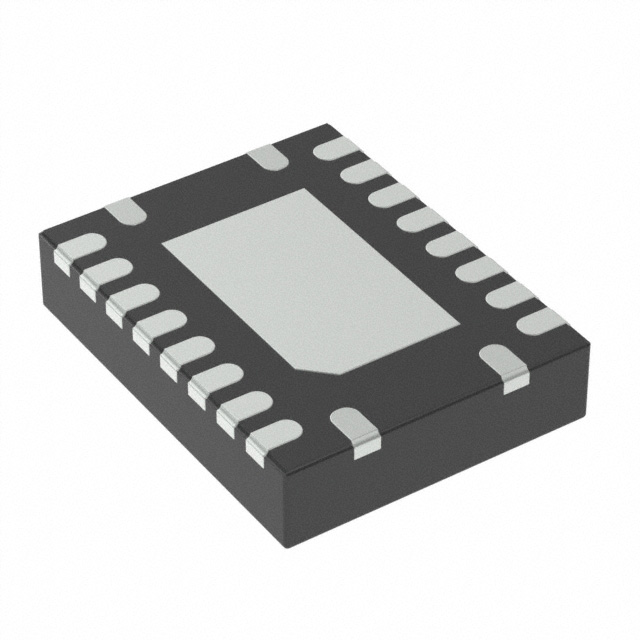

Key control features include adjustable current limit, enable functionality, frequency synchronization, light load efficiency, power good indication, pre-bias start-up, synchronous rectification, tracking, and adjustable UVLO. The device is housed in a 20-VQFN package with exposed pad, measuring 3.5mm x 4.5mm, and is designed for surface mount, wettable flank mounting.
Additional inherent protection features contribute to robust design, including hiccup mode overcurrent protection, input UVLO with hysteresis, VCC and gate drive UVLO protection, and thermal shutdown protection with hysteresis. The controller also offers a 0.8-V reference with ±1% feedback accuracy and 7.5-V gate drivers for standard VTH MOSFETs.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.04 | $1.04 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 6 V to 42 V.
The adjustable output voltage ranges from 0.8 V to 40 V.
The maximum output current is 20 A.
The operating temperature range is -40°C to 125°C (TJ).
It is in a 20-VQFN (3.5x4.5) package.
Features include adjustable current limit, enable, frequency synchronization, light load efficiency, power good, pre-bias start-up, synchronous rectification, tracking, and UVLO adjustable.
