| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

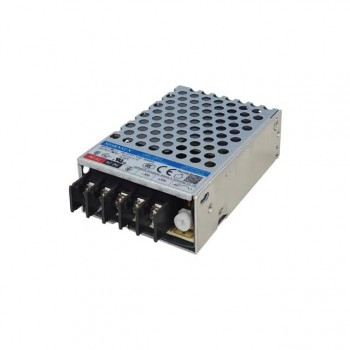

The Morning Star Industrial LM25-23B48 is an enclosed AC DC converter designed for ITE (Commercial) applications. It provides a single 48V output with a maximum current of 570mA, delivering a total power of 27W.
This converter operates across a wide input voltage range of 85 to 305 VAC or 100 to 430 VDC. It boasts an efficiency of 88% and offers an isolation voltage of 4 kV. The operating temperature range is -30°C to 70°C, with derating applied.
Featuring an adjustable output and a chassis mount type, the LM25-23B48 has dimensions of 80.0mm x 55.0mm x 25.0mm. It is approved by CB, CCC, CE, and UL standards, including compliance with standard 62368-1.
Key compliance details include RoHS3 Compliant status, MSL 1 Unlimited, and REACH Unaffected. This product is suitable for various commercial electronic systems requiring a stable DC power supply.
The output voltage is 48V.
The power rating is 27W.
The input voltage range is 85 ~ 305 VAC or 100 ~ 430 VDC.
The operating temperature range is -30°C to 70°C, with derating.
It uses chassis mount.
The dimensions are 80.0mm x 55.0mm x 25.0mm.
