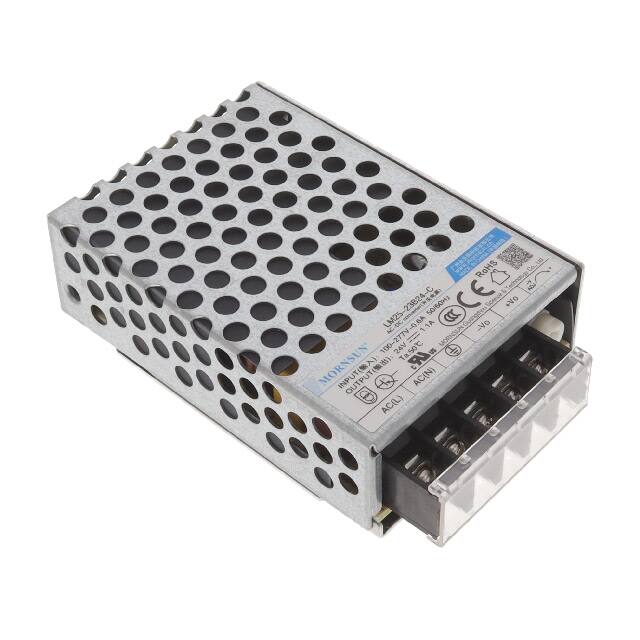

The Morning Star Industrial LM25-23B24-C is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides a power output of 26W with an efficiency of 87% and features an adjustable output with DC input capability and universal input.
This converter has a single output and offers 4kV of isolation voltage. It is designed for chassis mounting and operates within a temperature range of -30°C to 70°C, with derating applied at higher temperatures. The dimensions are 80.0mm x 55.0mm x 25.0mm.
Compliance is indicated by approval agencies including CB, CCC, CE, and UL, with a standard number of 62368-1. The RoHS status is RoHS3 Compliant, Moisture Sensitivity Level is 1 Unlimited, and REACH status is Unaffected. These compliance details are based on available data and may require verification.
-30°C to 70°C with derating.
24V at 1.1A (26W).
87%.
4 kV.
CB, CCC, CE, UL (62368-1).
Chassis mount.
