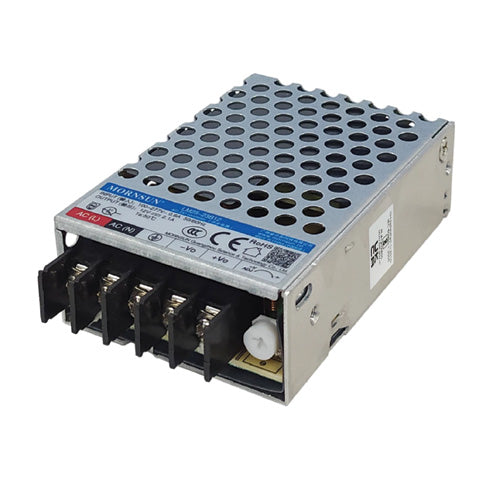

The Morning Star Industrial LM25-23B12 is an enclosed AC/DC power supply designed for reliable power conversion. It features a wide input voltage range of 85~305Vac, providing flexibility for various power grids. The unit delivers a stable 12Vdc output with a maximum current of 2.1A, resulting in a total power capacity of 25W.
This power supply is suitable for ITE (Commercial) applications and offers an adjustable output voltage. It is designed for chassis mounting, making it convenient for integration into various systems. The operating temperature range is -30°C to 70°C with derating, ensuring performance in diverse environmental conditions. Safety certifications include CB, CCC, CE, and UL, with compliance to standard 62368-1.
Key specifications include an efficiency of 85% and an isolation voltage of 4kV. The no-load power consumption is minimal, at less than or equal to 0.5 Watts. The unit can operate at altitudes up to 5000 meters. Its dimensions are 80.0mm in length, 55.0mm in width, and 25.0mm in height.
The input voltage range is 85 to 305Vac.
The operating temperature range is -30°C to 70°C with derating.
The converter is enclosed and chassis mount.
Output voltage is 12Vdc and maximum output current is 2.1A.
Maximum power is 25W.
It is approved to CB, CCC, CE, and UL standards (62368-1).
Isolation voltage is 4kV.
