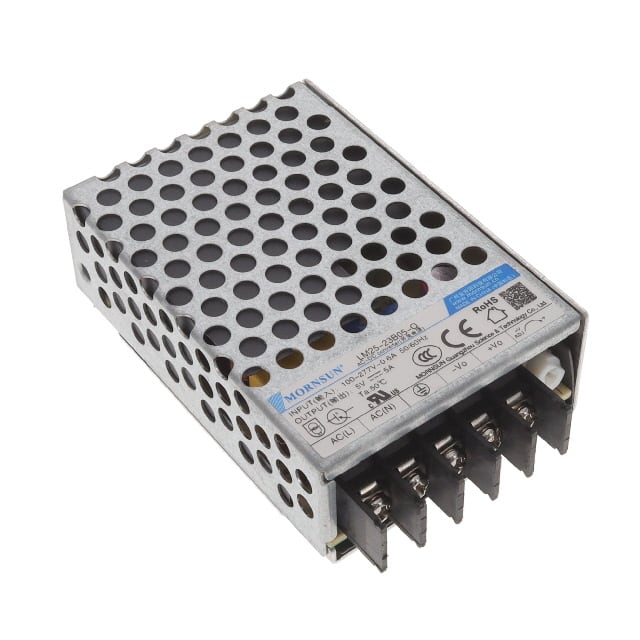

The Mornsun LM25-23B05-Q is a 25W enclosed AC/DC switching power supply designed for reliable power conversion. It accepts a wide universal AC input voltage range of 85-305VAC and also supports 100-430VDC input, making it versatile for various applications. This power supply delivers a stable 5V output at 5A, providing up to 25W of power.
Key features include high efficiency up to 88% and low no-load power consumption below 0.5W. The operating ambient temperature range is -30°C to +70°C, with derating. It offers high I/O isolation test voltage up to 4000VAC and includes protections for short circuit, over-current, and over-voltage.
Designed for chassis mounting, the LM25-23B05-Q has a compact size of 80.0mm x 55.0mm x 25.0mm. It meets safety standards such as UL62368-1 and EN62368-1, with approval agencies including CB, CCC, CE, and UL. This power supply is suitable for industrial, LED lighting control, security, and telecommunications applications.
85-305 VAC or 100-430 VDC.
5V and 5A, providing 25W.
-30°C to 70°C with derating.
4000 VAC.
Short circuit, overload, and overvoltage protection.
Up to 88% at 230VAC, typical 81%.
Enclosed, conformal coated, chassis mount. Dimensions 80.0 x 55.0 x 25.0 mm.
