| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

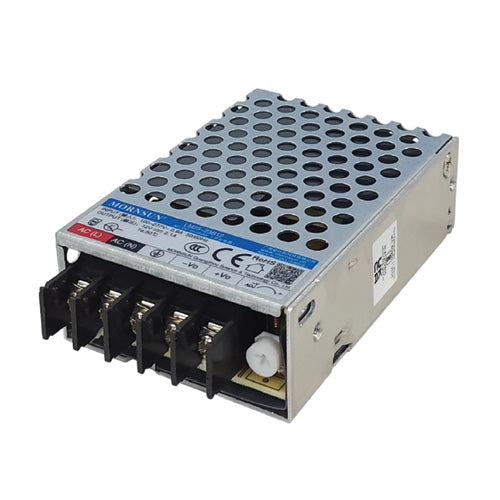

The Mornsun LM25-23B05 is an enclosed AC/DC power supply designed for industrial applications. It accepts a wide AC input range of 85~305Vac and provides a stable 5Vdc output with a maximum current of 5 Amps, delivering up to 25 Watts of power.
This power supply features an 81% efficiency rating and an isolation voltage of 4 kV. It is designed for chassis mounting and operates within a temperature range of -30°C to 70°C, with derating. The unit supports operation at altitudes up to 5000 meters.
Key specifications include adjustable output voltage and a low no-load power consumption of less than 0.5 Watts. It complies with safety standard 62368-1 and holds approval from agencies such as CB, CCC, CE, and UL. The dimensions are 80.0mm x 55.0mm x 25.0mm.
The input voltage range is 85~305 Vac.
The package type is Enclosed with Chassis Mount mounting.
The operating temperature range is -30°C to 70°C with derating.
The output voltage is 5 Vdc and the output current is 5 A.
The power rating is 25 Watts.
The efficiency is 81%.
The approvals are CB, CCC, CE, and UL.
