| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,164 pcs
|
7164 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Duty Cycle | |
| Features | |
| Frequency | |
| Function | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Current | |
| Output Type | |
| Supplier Device Package | |
| Synchronous Rectifier | |
| Topology | |
| Voltage |
The Texas Instruments LM22679TJE-ADJ/NOPB is an active step-down (buck) voltage regulator designed for efficient power conversion. It accepts an input voltage ranging from 4.5V to 42V and can deliver a maximum output current of 5A.
This regulator features a fixed switching frequency of 500kHz, contributing to its compact design and stable operation. The output voltage is adjustable, with a minimum configurable voltage of 1.285V and a maximum of 37V. Key electrical characteristics include a typical quiescent current of 0.0034A and a maximum duty cycle of 90%.

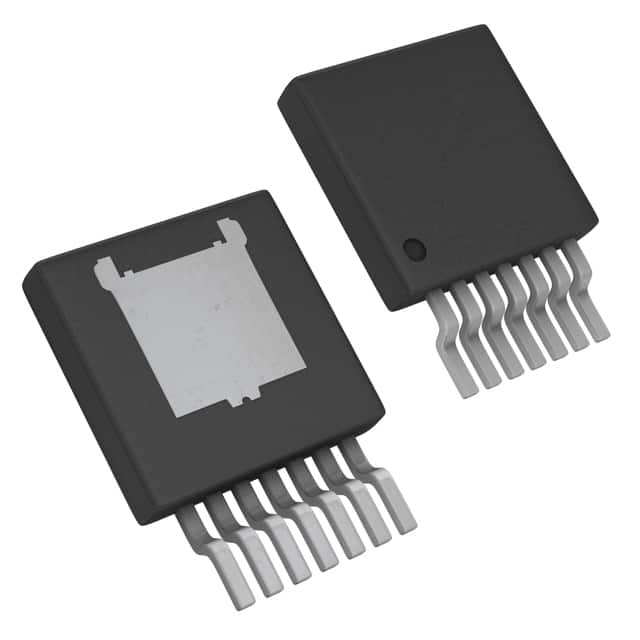

Designed for surface mount applications, the LM22679TJE-ADJ/NOPB comes in a TO-263-7 Thin package. It operates within a junction temperature range of -40°C to 125°C. Additional features include adjustable current limit and over-current protection, enhancing its robustness in various applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.12 | $4.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is from 4.5 V to 42 V.
The maximum output current is 5 A.
The output voltage can be adjusted from 1.285 V up to 37 V.
The switching frequency is 500 kHz.
The operating temperature range is -40°C to 125°C.
It is supplied in a TO-263-7 Thin package.
