| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

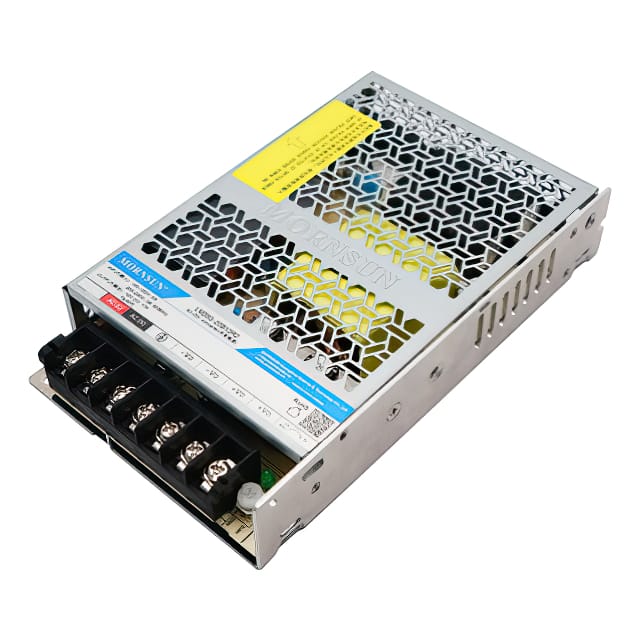

The LM200-20B54R2 is an enclosed AC DC converter manufactured by Morning Star Industrial. This unit provides a 54VDC output voltage with a maximum current of 3.9A, delivering a total power of 210.6W. It operates with an input voltage range of 90-132VAC or 180-264VAC, and can also accept a DC input of 240-370VDC.
Designed for efficiency, this converter boasts a 92% efficiency rating. It features adjustable output and DC input capability, making it versatile for various applications. The isolation voltage is rated at 4000VAC. The operating temperature range is -40°C to 85°C with derating.
With dimensions of 159.0mm x 97.0mm x 30.0mm, the LM200-20B54R2 is designed for chassis mounting. It meets safety standards including 60335-1 and 62368-1. This converter is suitable for applications in household appliances and ITE (Commercial) equipment.
The output voltage is 54VDC.
The maximum output current is 3.9A.
The power rating is 210.6W.
The input voltage range is 90-132VAC or 180-264VAC.
The operating temperature range is -40°C to 85°C (With Derating).
The dimensions are 159.0mm x 97.0mm x 30.0mm.
It complies with 60335-1 and 62368-1.
