| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

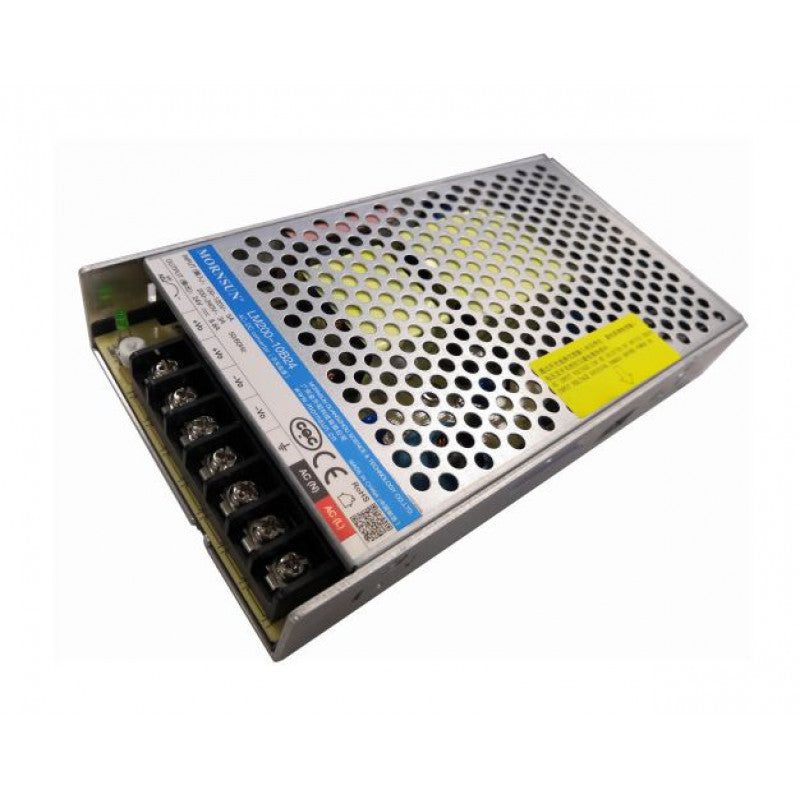

The Mornsun LM200-10B36 is a 212W enclosed AC/DC switching power supply designed for reliable power conversion. It provides a single output voltage of 36V with a current rating of 5.9A.
This power supply features an adjustable output and is designed for chassis mounting, making it suitable for integration into various systems. Its operating temperature range is from -30°C to 70°C, with derating applied at higher temperatures. The unit boasts an efficiency of 89% and meets safety standards including 60335-1 and 62368-1.
Applications for the LM200-10B36 include household appliances and ITE (Commercial) equipment. It is approved by CE and CQC, indicating compliance with international safety and performance standards.
The LM200-10B36 provides a single output of 36V at 5.9A.
The LM200-10B36 is rated for 212W output power.
The LM200-10B36 has an efficiency of 89%.
The LM200-10B36 operates from -30°C to 70°C with derating.
The LM200-10B36 is designed for chassis mounting.
The LM200-10B36 measures 179.0mm in length, 99.0mm in width, and 30.0mm in height.
The LM200-10B36 is suitable for household appliances and ITE (commercial) applications.
