| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage |

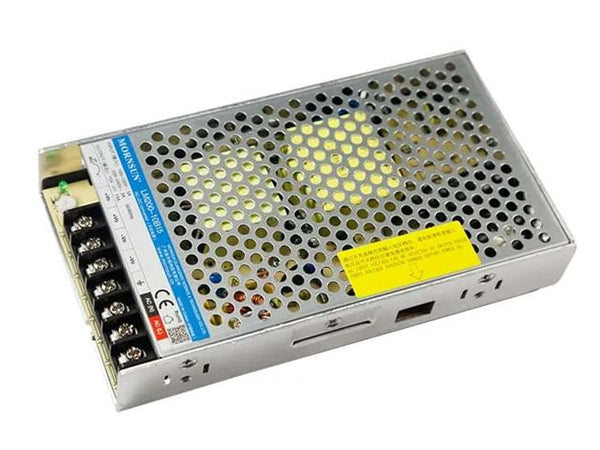

The Mornsun LM200-10B15-C is an enclosed AC-DC switching power supply designed for reliable power conversion. It accepts a universal input voltage range of 180-264VAC or 240-370VDC, making it versatile for various applications.
This power supply delivers a stable 15VDC output with a maximum current of 14A, providing a total power of 210W. It boasts an efficiency of 88% and is suitable for household appliances and ITE commercial equipment. The unit is designed for chassis mounting, facilitating integration into larger systems.
Key features include excellent EMC performance and compliance with standards such as IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, and GB4943. The operating temperature range is -30°C to 70°C with derating, ensuring operation in diverse environmental conditions. The LM200-10B15-C is also recognized by approval agencies including CB, CE, CQC, cURus, and UL.
The LM200-10B15-C provides a 15VDC output voltage.
The LM200-10B15-C has a maximum power output of 210W.
The operating temperature range is -30°C to 70°C with derating.
The LM200-10B15-C supports chassis mounting.
The LM200-10B15-C meets standards including IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, and GB4943.
