| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

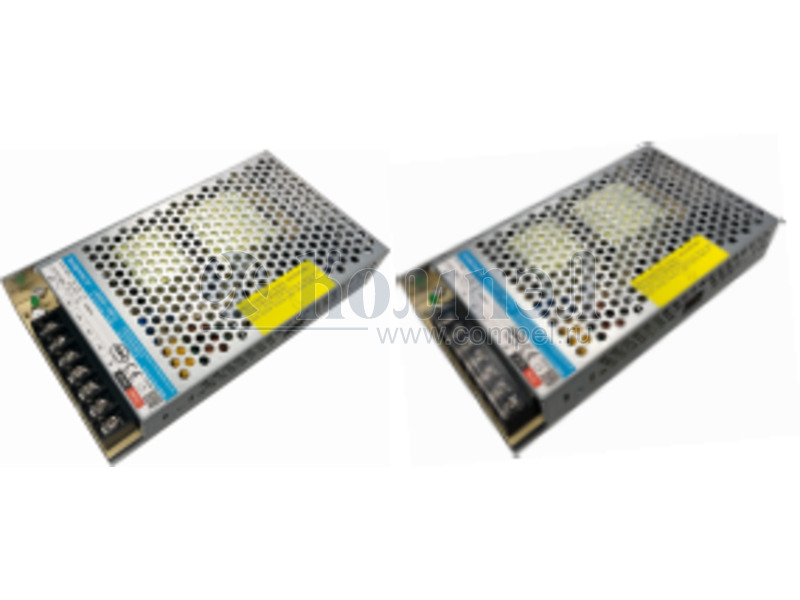

The Morning Star Industrial LM200-10B12-Q is an enclosed AC/DC switching power supply designed for reliable power conversion. It offers a nominal output power of 204W with a 12V output voltage and a maximum current of 17A. The converter features selectable AC input ranges of 90-132VAC and 180-264VAC, as well as a DC input range of 240-370VDC.
Key electrical specifications include an efficiency of 87.5% at 230VAC and an isolation voltage of 3kV between input and output. The operating temperature range is -30°C to +70°C with derating. This model has a single output and is suitable for applications requiring stable power.
Designed for chassis mounting, the LM200-10B12-Q has dimensions of 179.0mm x 99.0mm x 30.0mm. It includes features such as adjustable output and protection against short circuit, over-current, over-voltage, and over-temperature. The unit meets standards like UL62368-1, EN62368-1, and GB4943.1, making it suitable for industrial and ITE (Commercial) applications.
The nominal output voltage is 12V.
The maximum output current is 17A.
The efficiency is 87.5% at 230VAC.
The operating temperature range is -30°C to +70°C with derating.
It uses chassis mount.
The dimensions are 179.0mm x 99.0mm x 30.0mm.
