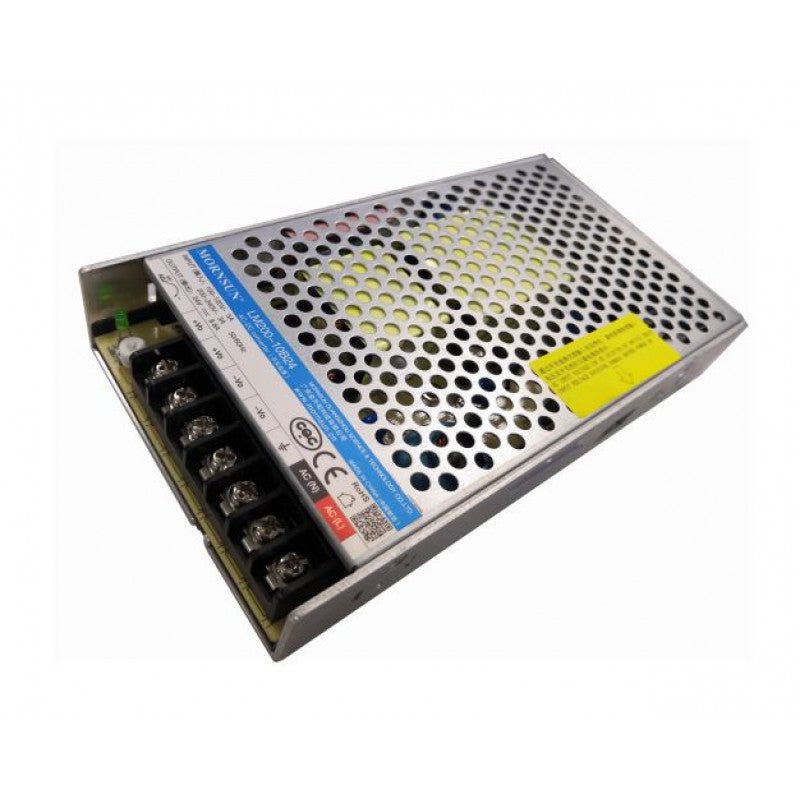

The Morning Star Industrial LM200-10B12 is a 204W enclosed AC/DC switching power supply designed for reliable power conversion. It accepts a selectable AC input range of 90-132 VAC or 180-264 VAC, and also supports a DC input range of 240-373 VDC. This unit provides a stable 12V output with a current rating of 17A.
Key electrical specifications include an efficiency of 87.5% at 230VAC, output voltage accuracy of ±1.5%, line regulation of ±0.5%, and load regulation of ±0.5%. It offers protection against short circuit, over-current, over-voltage, and over-temperature conditions. The operating ambient temperature range is -30°C to +70°C.
Designed for industrial and commercial applications, the LM200-10B12 features chassis mounting for easy integration into systems. It meets standards such as EN60335-1 and EN62368-1, with CE and CQC certifications. The power supply also boasts ultralow standby power consumption of less than 0.75W at 230VAC.
The nominal output voltage is 12V.
The maximum output current is 17A.
The power rating is 204W.
The efficiency is 87.5% at 230VAC.
The operating temperature range is -30°C to 70°C.
It is a chassis mount type.
It is certified by CE and CQC.
