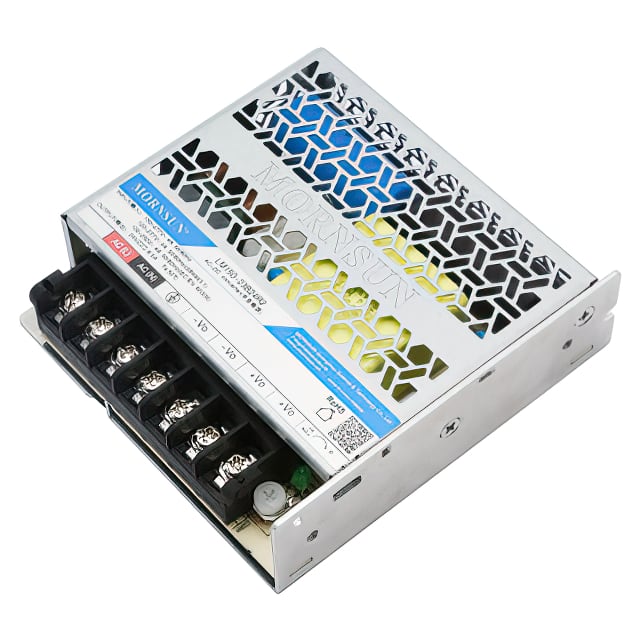

The Mornsun LM150-23B24R2 is an enclosed AC/DC power supply designed for industrial applications. It features a universal input voltage range of 80-305VAC and accepts DC input as well, offering flexibility in power sourcing. With an output power of 156W and a single output, this converter is suitable for various ITE and household appliance applications.
Key electrical specifications include an efficiency of 91.5% and an input-to-output isolation voltage of 4000VAC. The unit provides protection against over-current, over-voltage, short circuit, and over-temperature conditions, ensuring reliable operation. Its compact dimensions of 99.0mm x 97.0mm x 30.0mm make it suitable for space-constrained designs.
The LM150-23B24R2 operates within a wide ambient temperature range of -40°C to +85°C, with derating. It is designed to meet safety standards such as EN62368 and EN60335, and has an OVC III rating. The power supply is chassis mountable, facilitating integration into various systems.
80-305 VAC or 100-430 VDC.
24V at 6.5A.
91.5%.
Over Current, Over Voltage, Short Circuit, Over Temperature.
4000 VAC between input and output.
-40°C to 85°C with derating.
Chassis mount, dimensions 99.0mm x 97.0mm x 30.0mm.
