LM150-20B24-Q
Morning Star Industrial
The Morning Star Industrial LM150-20B24-Q is an enclosed AC/DC converter with a 156W power rating and 6.5A output current. It features chassis mounting and adjustable output.
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

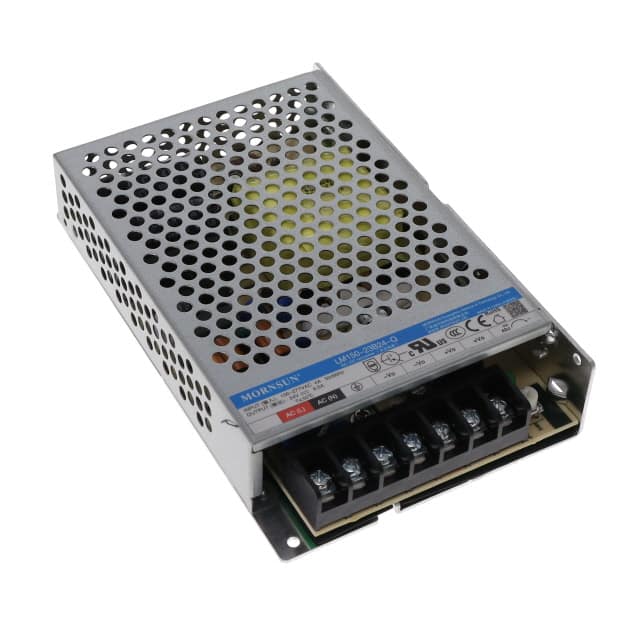

The Mornsun LM150-23B24-Q is a versatile AC/DC converter designed for various applications, including household appliances and ITE commercial equipment. It delivers a stable 24V output with a maximum current of 6.5A, providing a total power of 156W. This converter operates with an efficiency of 88% and offers universal input voltage compatibility, accepting ranges from 85 to 305 VAC and 120 to 430 VDC.
Key features include adjustable output, DC input capability, and a high isolation voltage of 4 kV. The unit is built with an enclosed, conformal coated type and is designed for chassis mounting, making it suitable for integration into various systems. Its operating temperature range is -30°C to 70°C with derating. The dimensions are 159.0mm x 97.0mm x 30.0mm.
Compliance is certified by CB, CCC, CE, cURus, and UL standards, including 60335-1 and 62368-1. The LM150-23B24-Q is RoHS3 compliant, has an MSL of 1, and is REACH unaffected.
The output voltage is 24V.
The maximum output current is 6.5A.
The power rating is 156W.
The operating temperature range is -30°C to 70°C with derating.
The dimensions are 159.0mm x 97.0mm x 30.0mm.
It is certified by CB, CCC, CE, cURus, and UL.
