| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Tape & Reel | |
| Type | |
| Voltage |

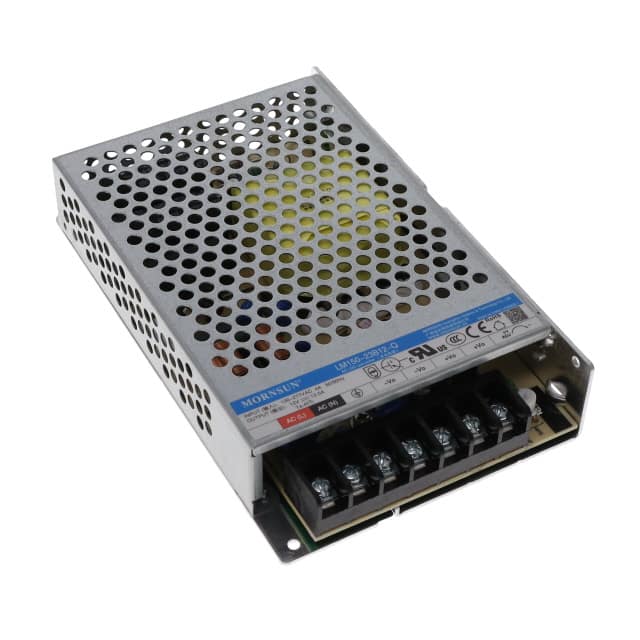

The Morning Star Industrial LM150-23B12-Q is an enclosed, conformal coated AC/DC converter designed for various applications including household appliances and ITE commercial equipment. It delivers a power output of 150W with a current rating of 12.5A and an efficiency of 86%.
This converter supports universal input and features adjustable output, making it versatile for different design needs. It offers an isolation voltage of 4 kV and operates within a temperature range of -30°C to 70°C with derating. The unit is designed for chassis mounting and meets standards such as 60335-1 and 62368-1.
Key specifications include dimensions of 159.0mm x 97.0mm x 30.0mm. It is compliant with RoHS3 and has an MSL rating of 1.
12V at 12.5A.
150W.
86%.
-30°C to 70°C with derating.
Chassis mount.
CB, CCC, CE, cURus, UL.
4kV.
