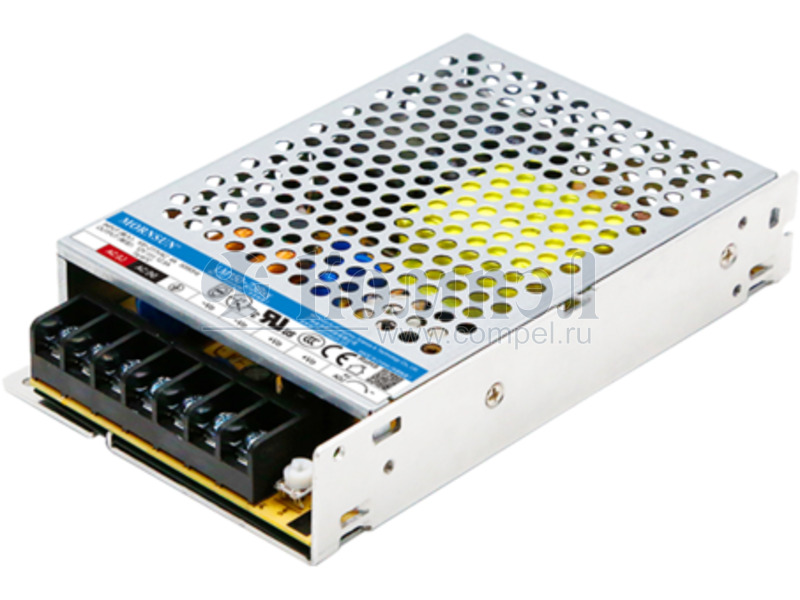

The Mornsun LM150-23B12-C is a 150W enclosed AC/DC switching power supply designed for versatile applications. It accepts a universal input voltage range of 85-305VAC and also supports 120-430VDC input.
Key electrical specifications include a 12V output voltage and 12.5A output current, delivering a total of 150W of power. The converter boasts an efficiency of 86% and features high I/O isolation up to 4000VAC. Protection features include short circuit, over load, and over voltage protection.
This power supply operates within an ambient temperature range of -30°C to +70°C, with derating. It is designed for chassis mounting and is approved by multiple agencies including CB, CCC, CE, cURus, and UL, meeting standards such as IEC/EN60335-1 and IEC/EN62368-1. Its enclosed type and robust design make it suitable for industrial and commercial applications.
The nominal output voltage is 12V.
The maximum output current is 12.5A.
The output power is 150W.
The input voltage range is 85-305VAC or 120-430VDC.
The operating temperature range is -30°C to 70°C.
It includes protection against short circuit, over load, and over voltage.
The efficiency is 86% at 230VAC.
