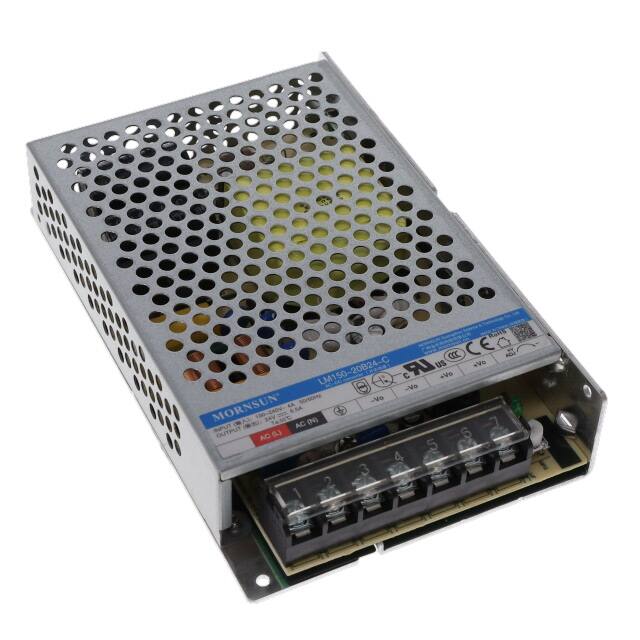

The Mornsun LM150-20B24-C is an enclosed AC-DC switching power supply designed for reliable power conversion. It offers a universal input voltage range of 85-264VAC or 120-370VDC, accepting both AC and DC inputs.
With a nominal output power of 156W and a single 24V output, this converter delivers a current of 6.5A. It boasts a high efficiency of 88% and features essential protection mechanisms including short circuit, over load, and over voltage protection. The unit is designed for chassis mounting and operates within an ambient temperature range of -30°C to +70°C.
Key specifications include an isolation voltage of 4000VAC between input and output, and compliance with standards such as IEC/EN62368-1 and EN60335-1. Its dimensions are 159.0mm x 97.0mm x 30.0mm. The LM150-20Bxx series is suitable for applications in industrial, ITE, and household appliances.
85-264 VAC or 120-370 VDC.
Enclosed chassis mount.
-30°C to 70°C with derating.
156W.
88%
4000VAC.
Short circuit, overload, and overvoltage protection.
