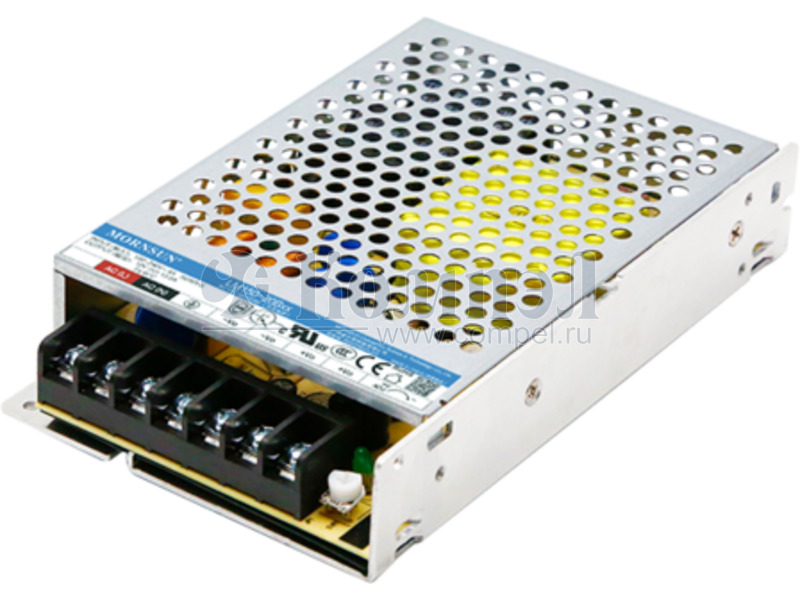

The Mornsun LM150-20B15-C is an enclosed AC/DC switching power supply designed for reliable power conversion. It features a universal input voltage range of 85-264VAC or 120-370VDC, making it suitable for global applications.
With a nominal output power of 150W, this converter provides a stable 15V output at 10A. It boasts an efficiency of 87% at 230VAC and offers robust protection features including short circuit, over load, over voltage, and over temperature protection. The high I/O isolation test voltage of 4000VAC ensures safety and reliability.
Designed for chassis mounting, the LM150-20B15-C has a compact size of 159.0mm x 97.0mm x 30.0mm. It operates within an ambient temperature range of -30°C to 70°C, with derating. The converter meets key industry standards such as IEC60335-1 and IEC62368-1, making it suitable for various industrial and commercial applications.
The input voltage range is 85-264VAC or 120-370VDC.
Output voltage is 15V and output current is 10A, providing 150W.
The operating temperature range is -30°C to 70°C with derating.
It includes short circuit, over load, over voltage, and over temperature protection.
The input-to-output isolation voltage is 4000VAC.
It is chassis mount and enclosed type.
It complies with 60335-1 and 62368-1.
