| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

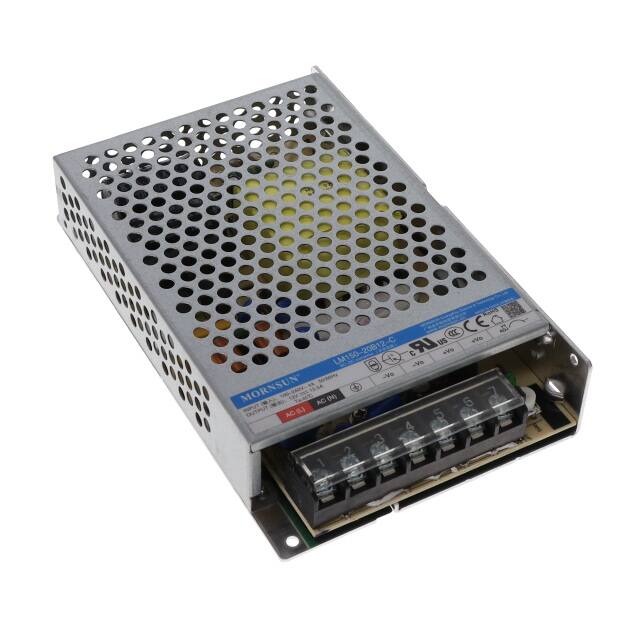

The LM150-20B12-C from Morning Star Industrial is a 150W enclosed AC/DC switching power supply. It is designed for universal input voltage, accepting a wide range from 85 to 264VAC or 120 to 370VDC.
This converter provides a single 12V output with a maximum current of 12.5A, delivering a total power of 150W. It boasts an efficiency of 86% and features high I/O isolation up to 4000VAC. The operating temperature range is -30°C to +70°C, with derating applied.
Designed for chassis mounting, the LM150-20B12-C is suitable for applications requiring stable power conversion. Its features include adjustable output, DC input capability, and protection against short circuit, over-current, and over-voltage conditions. The unit meets safety standards such as CB, CCC, CE, cURus, and UL, with compliance to EN60335-1 and EN62368-1.
Key specifications include dimensions of 159.0mm x 97.0mm x 30.0mm. The product is RoHS3 compliant and has an MSL of 1.
85-264 VAC or 120-370 VDC.
12V at 12.5A.
-30°C to 70°C with derating.
159.0mm x 97.0mm x 30.0 mm.
4 kV input to output.
60335-1 and 62368-1.
Chassis mount, enclosed.
