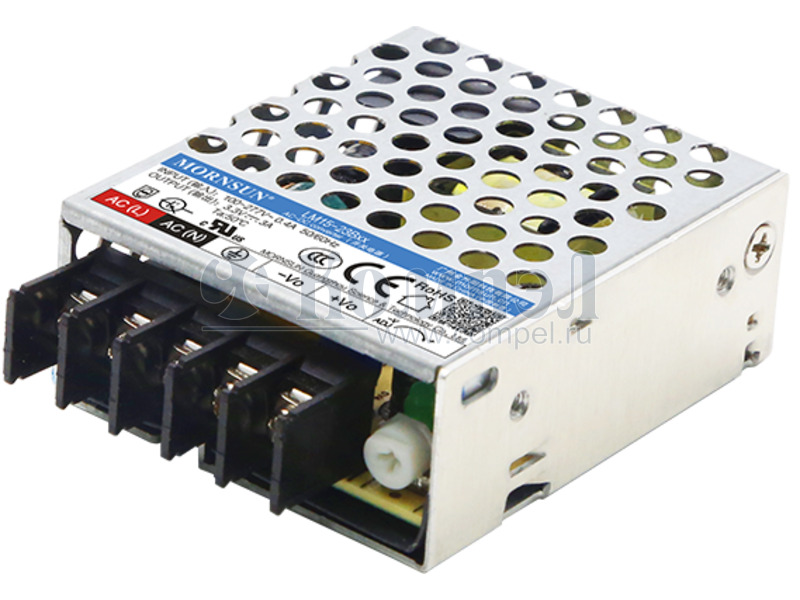

The Mornsun LM15-23B15-C is an enclosed AC/DC switching power supply designed for reliable power conversion. It features a universal input voltage range of 85-305VAC, accepting both AC and DC inputs.
With a nominal output power of 15W and a 15V output voltage, this converter offers an efficiency of up to 83% and a typical efficiency of 82% at 230VAC. It is designed to operate within an ambient temperature range of -30°C to +70°C, with derating applied. The unit provides essential protections including output short circuit, over-current, and over-voltage.
Measuring 65.0mm x 55.0mm x 25.0mm, the LM15-23B15-C is suitable for chassis mounting. It meets various safety and compliance standards, including UL62368-1, EN62368-1, and IEC62368-1, making it suitable for industrial, ITE, and household appliance applications.
Key features include high I/O isolation test voltage up to 4000VAC and low no-load power consumption. The series is designed to meet stringent EMC performance requirements.
The AC input range is 85 to 305 VAC, and the DC input range is 100 to 430 VDC.
The nominal output is 15V at 1A, with an adjustable range of 13.5V to 18V.
-30°C to 70°C with derating.
4000 VAC input-to-output isolation.
Chassis mount, enclosed package.
UL/EN/IEC 62368-1, EN61558, CCC, BIS, BS.
Up to 83% at 230VAC.
