| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Frequency | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage |

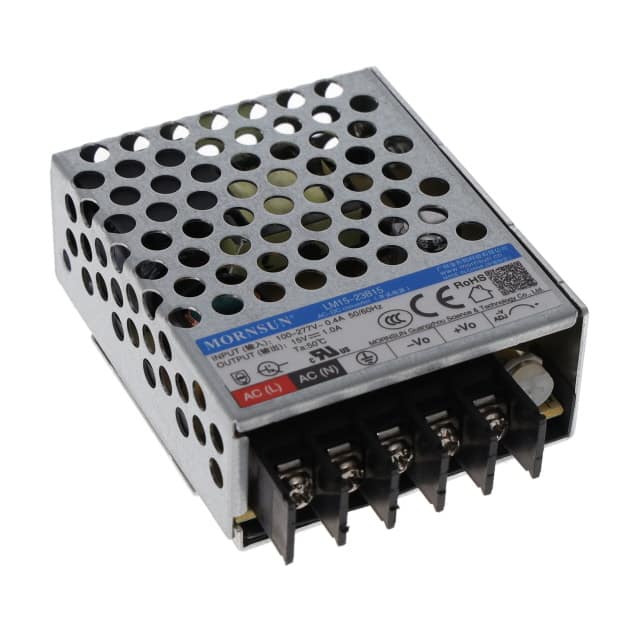

The Mornsun LM15-23B15 is an enclosed AC/DC switching power supply designed for reliable power conversion. It accepts a universal AC input voltage range of 85-305VAC and can also handle DC input from 100-430VDC. This converter provides a nominal output of 15V at 1A, delivering up to 15W of power.
Key features include high efficiency up to 82% and low no-load power consumption of less than 0.5W. The operating ambient temperature range is -30°C to +70°C, with derating applied at higher temperatures. It offers robust protection against short circuit, over-current, and over-voltage conditions. The unit is designed for chassis mounting and has dimensions of 65.0mm x 55.0mm x 25.0mm.
This series meets various international standards, including UL62368-1, EN62368-1, and IEC62368-1, making it suitable for industrial, commercial, and telecommunications applications. The high I/O isolation test voltage of up to 4000VAC ensures safety and reliability in demanding environments.
The nominal output voltage is 15V.
The maximum output current is 1A.
It accepts an AC input voltage range of 85-305VAC and a DC input range of 100-430VDC.
The operating ambient temperature range is -30°C to +70°C.
The dimensions are 65.0mm x 55.0mm x 25.0mm.
The RoHS status is RoHS3 Compliant.
