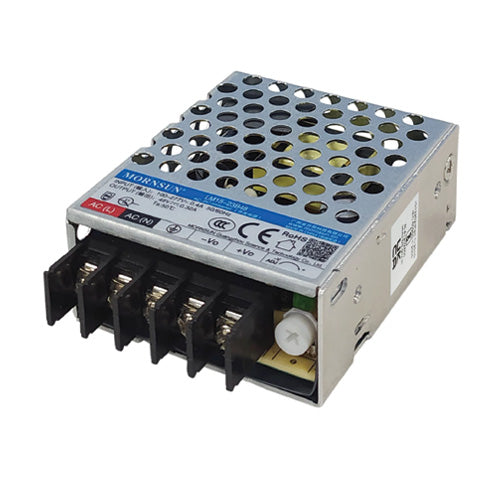

The Morning Star Industrial LM15-23B12 is a versatile AC/DC power supply designed for various applications. This enclosed unit provides a stable 12Vdc output at a maximum current of 1.3A, totaling 15W of power. It accepts a broad input voltage range from 85 to 305Vac, ensuring compatibility in diverse power environments.
Designed for ease of integration, the LM15-23B12 features a chassis mount for secure installation. Its operating temperature range spans from -30°C to +70°C with derating, making it suitable for demanding conditions. The power supply also boasts an efficiency of 82% and an adjustable output voltage feature.
Key specifications include a 4kV isolation voltage and compliance with standard IEC/EN 62368-1. The unit is approved by CB, CCC, CE, and UL agencies, indicating adherence to safety and performance standards. With a low no-load power consumption of less than 0.5W, it offers energy efficiency.
The input voltage range is 85~305Vac.
The output is 12Vdc at 1.3A.
The operating temperature range is -30°C to 70°C with derating.
The dimensions are 65.0mm x 55.0mm x 25.0mm (2.56" x 2.17" x 0.98").
It has CB, CCC, CE, and UL approvals.
The isolation voltage is 4kV.
The efficiency is 82%.
