| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

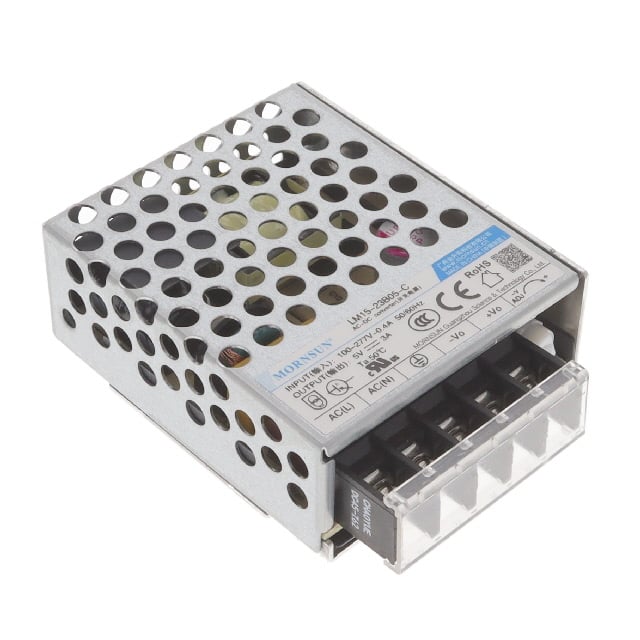

The LM15-23B05-C from Mornsun America, LLC is an enclosed AC DC converter designed for ITE (Commercial) applications. It delivers 15W of power with a single 5V output voltage and a maximum current of 3A.
This converter features a universal input voltage range of 85-305 VAC or 100-430 VDC, making it suitable for various power environments. It operates within a temperature range of -30°C to 70°C with derating and offers an efficiency of 78%.
The unit is chassis mountable and has dimensions of 65.0mm x 55.0mm x 25.0mm. It boasts an isolation voltage of 4kV and complies with standard number 62368-1. Approvals include CB, CCC, CE, cURus, and UL.
85-305 VAC or 100-430 VDC.
5V.
15W.
78%.
4 kV.
-30°C to 70°C with derating.
Enclosed, chassis mount, box package.
