| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

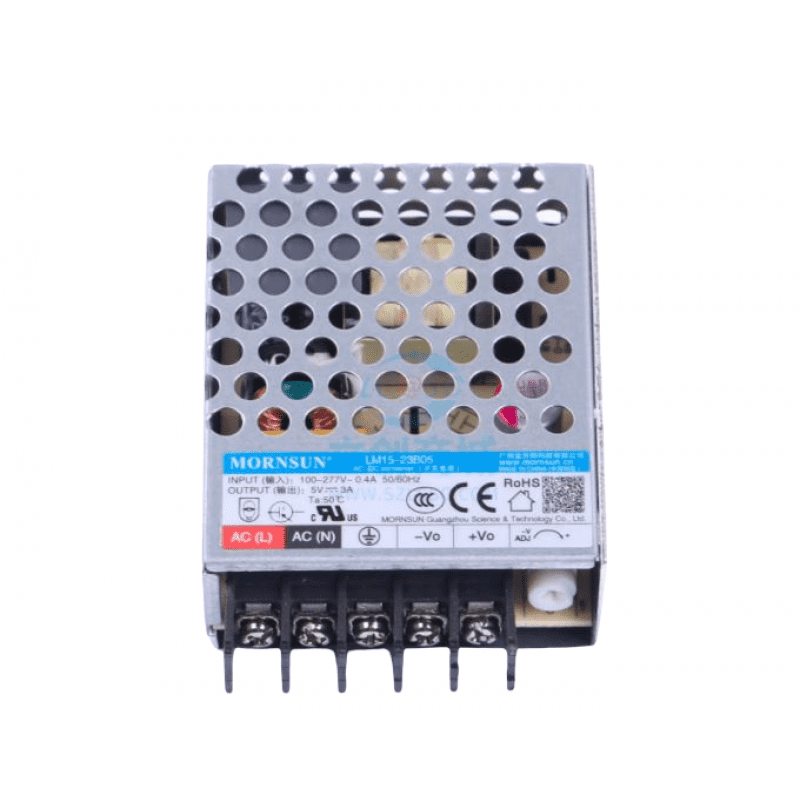

The Morning Star Industrial LM15-23B05 is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides a power output of 15W and a maximum current of 3A.
Key electrical specifications include an isolation voltage of 4 kV and an efficiency of 78%. The unit is designed for chassis mounting and operates within a temperature range of -30°C to 70°C, with derating applied at higher temperatures.
This converter complies with standard number 62368-1 and carries approvals from CB, CCC, CE, and UL. Its dimensions are 65.0mm in length, 55.0mm in width, and 25.0mm in height.
The LM15-23B05 operates from -30°C to 70°C with derating.
The isolation voltage is 4 kV.
The typical efficiency is 78%.
It is approved under CB, CCC, CE, and UL standards.
The output is 5V at 3A, providing 15W.
It is chassis mount.
It has a single output.
