The LM1496N is a doubled balanced modulator-demodulator IC manufactured by Texas Instruments. It produces an output voltage proportional to the product of an input signal voltage and a switching carrier signal. This component is designed for applications such as suppressed carrier modulation, amplitude modulation, synchronous detection, FM or PM detection, broadband frequency doubling, and chopping.
Key electrical characteristics include a wide frequency response up to 100 MHz, with typical carrier suppression of 65 dB at 0.5 MHz and 50 dB at 10 MHz. The device features fully balanced inputs and outputs, adjustable gain, and signal handling capabilities. It also exhibits low offset and drift.

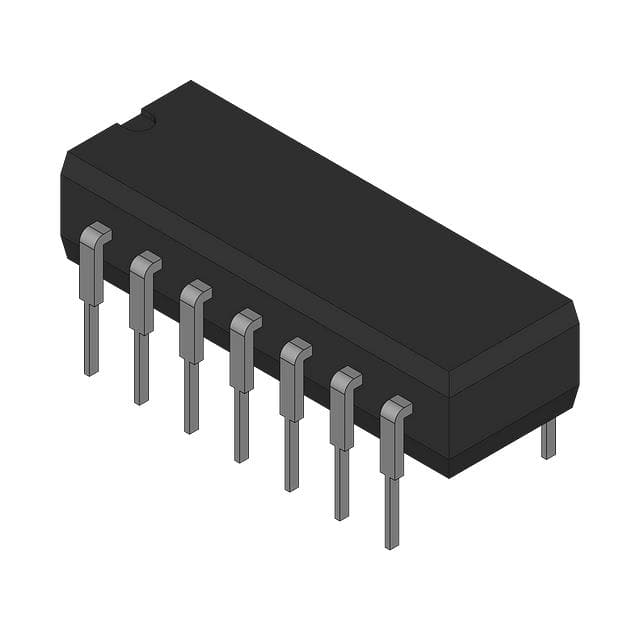

The LM1496N is available in a 14-PDIP through-hole package, making it suitable for standard PCB mounting. Its robust design and versatile functionality make it a valuable component for RF signal processing circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $27.44 | $27.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The LM1496N is a balanced modulator-demodulator that produces an output voltage proportional to the product of an input signal voltage and a switching carrier signal.
The LM1496N has a wide frequency response up to 100 MHz.
The typical carrier suppression is 65 dB at 0.5 MHz and 50 dB at 10 MHz.
The LM1496N is available in a 14-PDIP package.
The LM1496N is a through-hole mount component.
