| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-06-29 21:33:16 | |
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| CMRR, PSRR (Typ) | |
| Current | |
| Hysteresis | |
| Industrial Grade | |
| Lead Spacing | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Elements | |
| Operating Temperature | |
| Output Type | |
| Propagation Delay (Max) | |
| Supplier Device Package | |
| Type | |
| Voltage |
The Texas Instruments LM139AWG/883 is a quad comparator designed for low power consumption and low offset voltage. It features four independent precision voltage comparators, making it suitable for a variety of applications.
Key electrical specifications include a supply voltage range of 2V to 36V, a typical supply current per channel of 0.2mA, and a propagation delay of 1.3µs. The offset voltage is a maximum of 2mV at 25°C, with an input bias current of 100nA maximum. The common-mode input voltage range extends down to 0V, and the output type is open-collector, compatible with TTL, DTL, ECL, MOS, and CMOS logic systems.

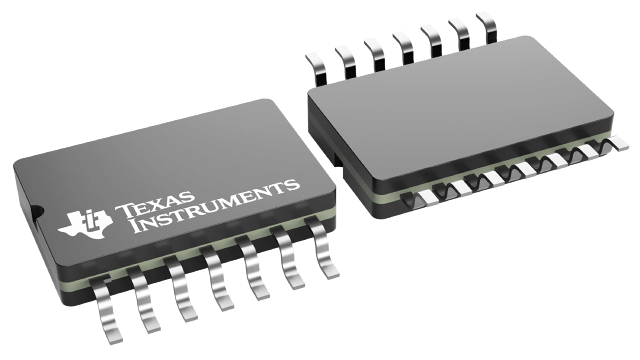

This comparator operates within an industrial temperature range of -55°C to 125°C. It is available in a 14-pin CFP (Ceramic Flat Pack) surface mount package, offering a compact solution for circuit design. The LM139AWG/883 is also noted for its wide supply voltage capability and low supply current drain, which is independent of the supply magnitude.
Designed for reliability, this component is suitable for applications requiring precise voltage comparison in demanding environments. Its robust specifications and wide operating conditions make it a versatile choice for analog circuit design.
| Qty | Low | High |
|---|---|---|
| 1+ | $23.76 | $23.76 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -55°C to 125°C.
The supply voltage range is 2V to 36V DC or ±1V to ±18V DC.
The output type is open-collector, compatible with CMOS, DTL, ECL, MOS, and TTL logic.
This device features 4 independent channels.
The typical propagation delay is 1.3µs.
The offset voltage is a maximum of 2mV at 25°C.
