| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CMRR, PSRR (Typ) | |
| Current | |
| Lead Spacing | |
| Mounting Type | |
| Number of Elements | |
| Operating Temperature | |
| Output Type | |
| Propagation Delay | |
| Supplier Device Package | |
| Supplier Package | |
| Type | |
| Voltage |
The LM119H/883 from Texas Instruments is a precision, high-speed dual comparator fabricated on a single monolithic chip. It is designed to operate from a wide range of supply voltages, including a single 5V logic supply.
Key electrical characteristics include a typical propagation delay of 80 ns at ±15V, an offset voltage of 4mV at 25°C, and input bias current of 500 nA. The device supports supply voltages from 5V to 36V and operates within an extended temperature range of -55°C to 125°C.
The comparator features open-collector outputs, making it compatible with RTL, DTL, and TTL logic families. It can also drive lamps and relays at currents up to 25 mA. The uncommitted collector output stage allows for isolation from system ground.

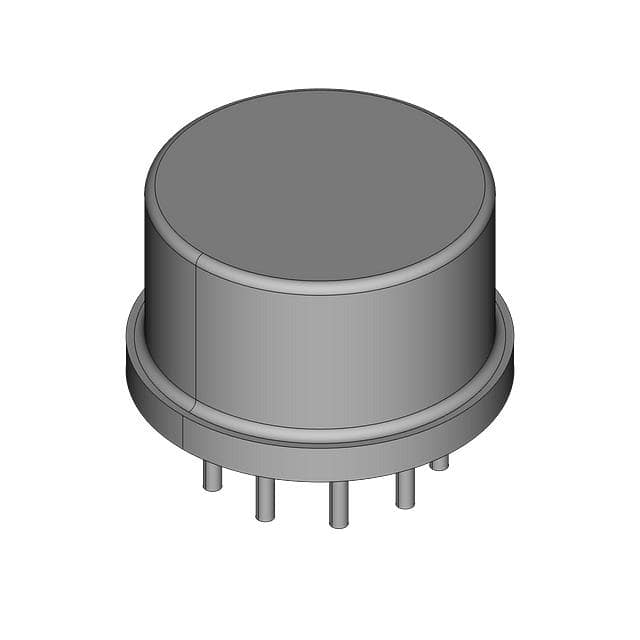

Packaged in a TO-100-10 metal can, the LM119H/883 is suitable for through-hole mounting. It is also available with radiation assurance for high-dose rate environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $40.01 | $40.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -55°C to 125°C.
The typical response time is 80 ns at ±15V.
It can operate from a minimum of 5V to a maximum of 36V.
It features an open-collector, DTL, RTL, TTL output type.
There are 2 independent comparator elements.
The maximum offset voltage at 25°C is 4 mV.
The package is TO-100-10 Metal Can.
