| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,560 pcs
|
2560 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
96 pcs
|
96 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Mounting Type | |
| Number of Elements | |
| Operating Temperature | |
| Output Type | |
| Response Time | |
| Supplier Device Package | |
| Supplier Package | |
| Supply Voltage | |
| Type | |
| Voltage |
The LM119H from Texas Instruments is a precision high-speed dual comparator fabricated on a single monolithic chip. It is designed to operate over a wide range of supply voltages, including a single 5-V logic supply and ground. This comparator offers a typical response time of 80 ns at ±15 V and a maximum input current of 1 µA over temperature.
The LM119H features two independent comparators and has an output type compatible with DTL, Open-Collector, RTL, and TTL logic. The uncommitted collector of the output stage allows it to drive lamps and relays at currents up to 25 mA. With a minimum fan-out of 2 on each side, it provides versatility in design.

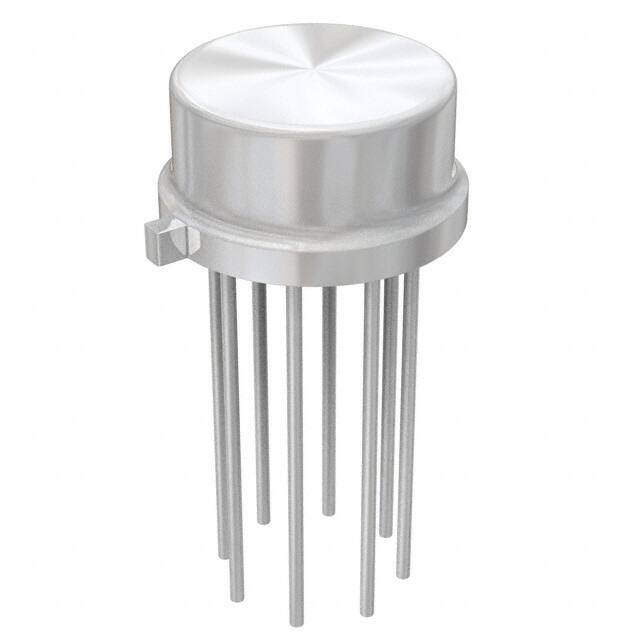

Packaged in a TO-100-10 metal can, the LM119H is suitable for through-hole mounting. It operates within a temperature range of -55°C to 125°C, making it robust for various environmental conditions. The standard package quantity is 500 units.
This series is fully specified for power supplies up to ±15 V and offers faster response than the LM111, at the expense of higher power dissipation. The high-speed operation, wide operating voltage range, and low package count make the LM119 series a versatile choice for applications requiring precise comparison.
| Qty | Low | High |
|---|---|---|
| 1+ | $40.01 | $40.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The LM119H operates from -55°C to 125°C.
The LM119H is available in a TO-100-10 Metal Can package.
The typical response time for the LM119H at ±15V is 80ns.
The maximum input current for the LM119H over temperature is 1µA.
The LM119H operates from a single 5V supply and is also specified for power supplies up to ±15V.
