| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
133 pcs
|
133 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Operating Temperature | |
| Slew Rate | |
| Supply Voltage |

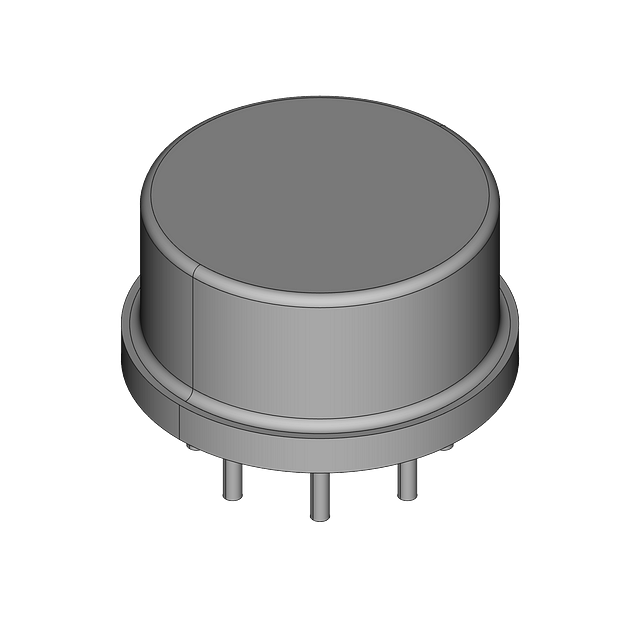

The LM118H from Thomson-CSF is a precision, high-speed operational amplifier engineered for demanding applications that require significant bandwidth and a fast slew rate. It offers a substantial increase in speed compared to general-purpose devices without compromising DC performance.
Key electrical characteristics include a 15 MHz small-signal bandwidth and a guaranteed 50V/µs slew rate. The device operates from supply voltages ranging from ±5V to ±20V and features internal unity-gain frequency compensation, simplifying its integration into designs. For applications requiring enhanced performance, external compensation can be added to further boost slew rate and bandwidth.
Input and output overload protection are integrated features. The LM118H is pin-compatible with standard general-purpose operational amplifiers, facilitating upgrades. Its high speed and fast settling time make it suitable for use in analog-to-digital converters, oscillators, active filters, and sample-and-hold circuits.
This operational amplifier is designed for through-hole mounting.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.87 | $1.87 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The LM118H has a small signal bandwidth of 15 MHz.
The LM118H has a guaranteed slew rate of 50V/µs.
The maximum bias current for the LM118H is 250 nA.
The LM118H operates from supply voltages of ±5V to ±20V.
Yes, the LM118H features internal unity gain frequency compensation.
The LM118H has an operating temperature range of -55°C to +125°C.
