| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,365 pcs
|
1365 pcs | On Request | 1 | On Request | On Request | 01+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Package / Case | |
| SVHC Present | |
| Tape & Reel |
The LM1117MPX-ADJ from Texas Instruments is an 800mA, low-dropout (LDO) linear voltage regulator. This adjustable version allows for output voltage settings from 1.25V to 13.8V using only two external resistors.
Key electrical specifications include a maximum output current of 800mA, a typical dropout voltage of 1.2V at full load, and excellent line and load regulation of 0.2% and 0.4% maximum, respectively. The device is protected by internal current limiting and thermal shutdown features.
Designed for surface mount applications, the LM1117MPX-ADJ is housed in a space-saving SOT-223 package. It operates across a temperature range of 0°C to 125°C, making it suitable for various industrial and commercial applications requiring stable voltage regulation.
The LM1117MPX-ADJ can provide a maximum output current of 800 mA.
The output voltage can be adjusted from 1.25 V to 13.8 V.
The operating temperature range is from 0°C to 125°C.

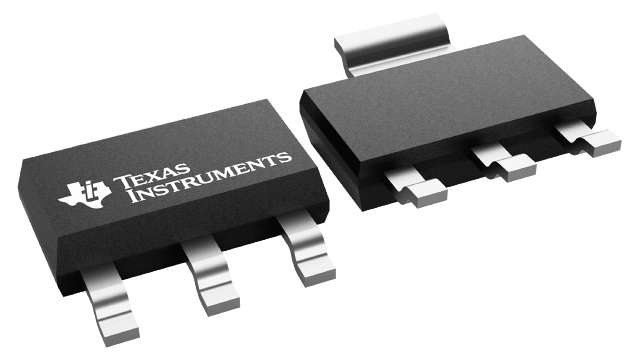

The LM1117MPX-ADJ is available in a SOT-223 package.
The dropout voltage is 1.2 V at a load current of 800 mA.
