| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
869 pcs
|
869 pcs | On Request | 1 | On Request | On Request | 1011P//A/ | On Request | On Request | |
|
172 pcs
|
172 pcs | On Request | 1 | On Request | On Request | 0619+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Junction Temperature | |
| Lead Style | |
| Mounting Type | |
| Output Current | |
| Output Voltage | |
| SVHC Present |

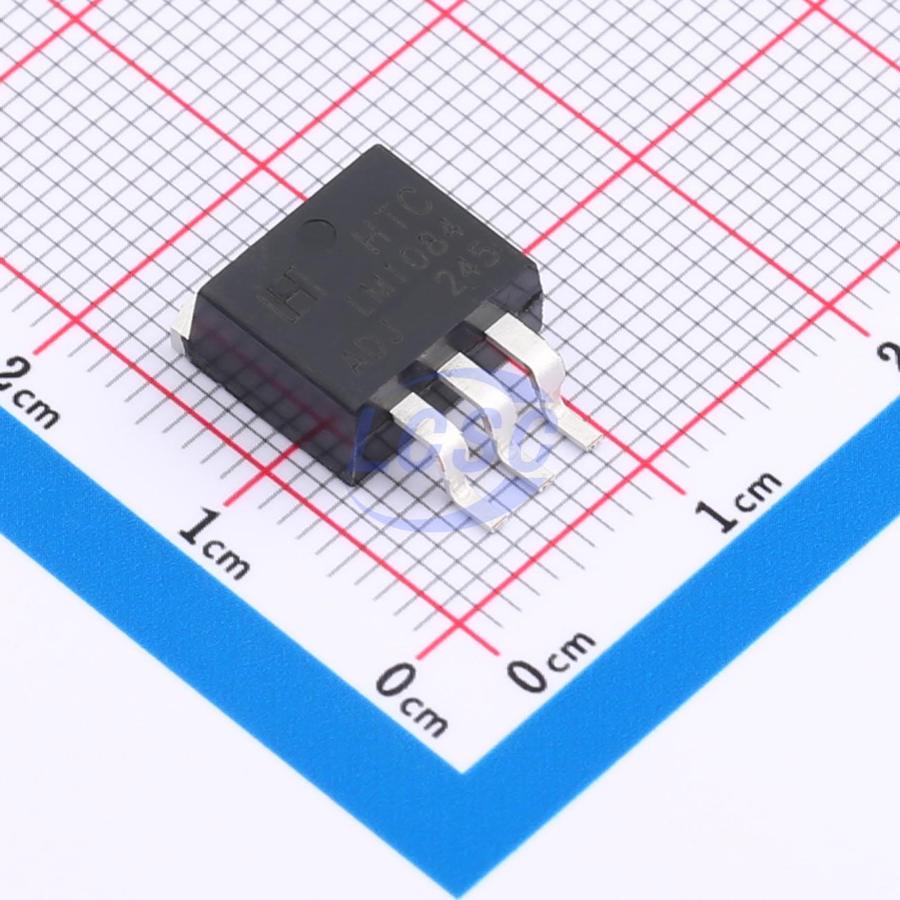

The LM1084R-ADJ is a low dropout positive voltage regulator manufactured by HTC. It is designed to provide a stable output voltage with a low voltage drop, even at high current loads. This regulator is capable of delivering up to 5A of output current.
Key electrical specifications include a typical line regulation of 0.015% and a typical load regulation of 0.1%. The maximum input-output voltage differential varies depending on the specific variant, with the adjustable version (LM1084-ADJ) rated for up to 29V. The device also features current limiting and thermal protection for enhanced reliability.
Available in TO-220 and TO-263 packages, the LM1084R-ADJ is suitable for various power management applications. Its pin configuration is similar to the LM317, allowing for easy integration into existing designs. The output voltage can be adjusted using two external resistors, providing design flexibility.
The LM1084R-ADJ can supply a maximum output current of 5A.
The LM1084 regulator is available in 3.3V, 5V, and adjustable versions.
The typical load regulation for the LM1084R-ADJ is 0.1%.
The LM1084 regulator is available in TO-263 and TO-220 packages.
The maximum input-output voltage differential for the LM1084-ADJ is 29V.
The storage temperature range for the LM1084 regulator is -65 to 150°C.
The junction temperature limit for the LM1084 regulator is 150°C.
